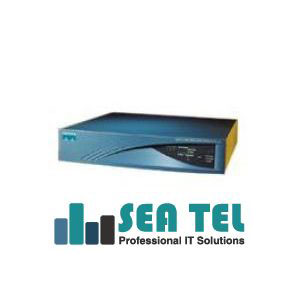

CVPN3030-NR

Manufacturer Part#: Cisco CVPN3030-NR
CVPN3030-NR Cisco Virtual Private Network(CVPN)

CVPN3030-NR - Vpn 3030 Concentrator (Non-Redun. / 1 P/S); 1500Users@50Mbps

Cisco VPN 3030 Concentrator is designed for medium to large organizations with bandwidth requirements from full T1/E1 through T3/E3 (50 Mbps maximum performance), with support for up to 1500 simultaneous IPSec sessions or 500 simultaneous clientless sessions. Specialized SEP modules perform hardware-based acceleration. Redundant and nonredundant configurations are available.


Cisco CVPN3030-NR Technical Information:
Encryption Standard: 3DES (168-bit)
Encryption Standard: AES (256-bit)
Encryption Standard: RC4
Encryption Standard: MPPE
Encryption Standard: AES (128-bit)
Encryption Standard: DES
Encryption Standard: AES (192-bit)
Authentication: TACACS+
Authentication: X.509 Certificates
Authentication: LDAP
Authentication: Microsoft NT Domain
Authentication: Microsoft Active Directory
Authentication: Internal User Database

Cisco CVPN3030-NR General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 3000
Product Model: 3030
Product Name: VPN 3030 Concentrator
Product Type: VPN Concentrator

Cisco CVPN3030-NR Interfaces/Ports:
Number of Ports: 3
Interfaces/Ports: 3 x RJ-45 10/100Base-TX LAN
Interfaces/Ports: 1 x DB-9 Management

Cisco CVPN3030-NR Technical Information:
Virtualization: 500 Simultaneous Clientless Sessions
Virtualization: 500 LAN-to-LAN Session
Virtualization: 1500 Simultaneous IPSec VPN Tunnels
Firewall Protection: Packet Filter
Firewall Protection: Keylogger Protection
Firewall Protection: Access Control
Authentication: RADIUS

Cisco CVPN3030-NR I/O Expansions:
Number of Expansion Slots: 3
Expansion Slots: (3 Total) Expansion Slot

Cisco CVPN3030-NR Management & Protocols:
Protocols: OSPF
Protocols: RIP v2.0
Protocols: RIP
Protocols: TCP/IP
Management:
CLI
Telnet
SNMP
Syslog
Web-based Management
CLI
Telnet
SNMP
Syslog
Web-based Management

Cisco CVPN3030-NR Processor & Chipset:
Processor: 1 x Motorola PowerPC

Cisco CVPN3030-NR Memory:
Standard Memory: 512 MB

Cisco CVPN3030-NR Controls/Indicators:
Status Indicators:
System
Expansion modules
Power supplies
Ethernet modules
Fan
System
Expansion modules
Power supplies
Ethernet modules
Fan

Cisco CVPN3030-NR Power Description:
Input Voltage: 110 V AC
Input Voltage: 220 V AC
Input Voltage Range: 100V AC to 240V AC
Frequency: 50 Hz to 60 Hz
Power Consumption: 50 W Maximum
Power Consumption: 35 W Nominal
Power Source: Power Supply

Cisco CVPN3030-NR Environmental Conditions:
Temperature: 32 degrees F (0.0 degrees C) to 131 degrees F (55.0 degrees C) Operating
Temperature: -4 degrees F (-20.0 degrees C) to 176 degrees F (80.0 degrees C) Non-operating
Humidity: 0 to 95% Non-condensing

Cisco CVPN3030-NR Physical Characteristics:
Dimensions: 3.5 Height x 17.5 Width x 11.5 Depth
Weight: 28 lb
