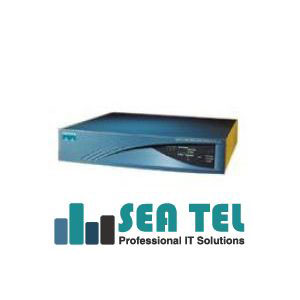

CVPN3020E-RED-K9

Manufacturer Part#: Cisco CVPN3020E-RED-K9
CVPN3020E-RED-K9 Cisco Virtual Private Network(CVPN)

CVPN3020E-RED-K9 VPN3020:Chassis, 3FE, 2SEP-E, 750 user, client, 2 PWR

Cisco VPN 3000 Series Concentrator is a best-in-class, remote-access VPN solution for enterprise-class deployment. A standards-based, easy-to-use VPN client and scalable VPN tunnel termination devices are included, as well as a management system that enables corporations to easily install, configure, and monitor their remote access VPNs. Remote connections can be established either from a SSL-capable Web browser or an installed VPN Client, allowing for maximum flexibility and application access without the need to deploy and manage multiple unique devices for secure corporate or partner application access. Incorporating the most advanced, high-availability capabilities with a unique purpose-built, remote-access architecture, it allows corporations to build high-performance, scalable, and robust VPN infrastructures to support their mission-critical, remote-access applications.


Cisco CVPN3020E-RED-K9 Technical Information:
VPN Support:
VPN load balancing allows for multiple units to cluster as a single shared pool
L2TP over IPSec
PPTP (Point-to-Point Tunneling Protocol) with encryption
IKE (Internet Key Exchange)
Diffie-Hellman Group 1, 2, 5 and 7
Perfect Forward Secrecy (PFS)
Split tunneling
VPN load balancing allows for multiple units to cluster as a single shared pool
L2TP over IPSec
PPTP (Point-to-Point Tunneling Protocol) with encryption
IKE (Internet Key Exchange)
Diffie-Hellman Group 1, 2, 5 and 7
Perfect Forward Secrecy (PFS)
Split tunneling

Cisco CVPN3020E-RED-K9 I/O Expansions:
Number of Expansion Slots: 1
Expansion Slots: (1 Total) Expansion Slot

Cisco CVPN3020E-RED-K9 Management & Protocols:
Management:
VPN Concentrator Manager
Command line interface
Telnet
SSH v1
DHCP
Session monitoring and management
File management, including SCP and TFTP transfer
Digital certificate enrollment and management
Session limit setting
Traceroute
Syslog

Cisco CVPN3020E-RED-K9 Processor & Chipset:
Processor: Motorola PowerPC

Cisco CVPN3020E-RED-K9 Memory:
Standard Memory: 256 MB

Cisco CVPN3020E-RED-K9 Power Description:
Input Voltage: 110 V AC
Input Voltage: 220 V AC
Input Voltage Range: 100V AC to 240V AC
Power Source: Power Supply

Cisco CVPN3020E-RED-K9 Physical Characteristics:
Compatible Rack Unit: 2U
Form Factor: Rack-mountable
Dimensions: 3.5 Height x 17.5 Width x 14.5 Depth

Cisco CVPN3020E-RED-K9 Additional infomation:
Additional Information:
Encryption Method: Hardware
2 x Encryption (SEP) Module
Optional Redundant SEP
Load Balancing
System redundancy via VRRP
Encryption Method: Hardware
2 x Encryption (SEP) Module
Optional Redundant SEP
Load Balancing
System redundancy via VRRP

Cisco CVPN3020E-RED-K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: VPN 3000
Product Name: VPN 3020 Concentrator
Product Type: VPN Concentrator

Cisco CVPN3020E-RED-K9 Interfaces/Ports:
Number of Ports: 3
Interfaces/Ports: 3 x RJ-45 10/100Base-TX

Cisco CVPN3020E-RED-K9 Technical Information:
Virtualization: 750 Simultaneous IPSec VPN Tunnels
Virtualization: 250 LAN-to-LAN Session
Virtualization: 200 Web VPN Peers
Firewall Protection: Access Control
Firewall Protection: URL Filtering
Encryption Standard: 3DES (168-bit)
Encryption Standard: AES (128-bit)
Encryption Standard: DES
Encryption Standard: RC4
Encryption Standard: MPPE
Encryption Standard: AES (256-bit)
Encryption Standard: AES (192-bit)
Authentication: Kerberos
Authentication: RSA SecurID
Authentication: TACACS+
Authentication: HMAC-MD5
Authentication: HMAC-SHA-1
Authentication: LDAP
Authentication: RADIUS
Authentication: Digital Certificates
Authentication: SDI Tokens
