CVPN3005-E/FE-BUN

Manufacturer Part#: Cisco CVPN3005-E/FE-BUN
CVPN3005-E/FE-BUN Cisco Virtual Private Network(CVPN)

CVPN3005-E/FE-BUN VPN Concentrator - 1 x 10/100Base-TX Fast Ethernet , 1 x 10/100Base-TX Fast Ethernet

Cisco VPN 3005 Concentrator is designed for small to medium-sized organizations with bandwidth requirements up to full-duplex T1/E1 (4 Mbps maximum performance), with support for up to 200 simultaneous IPsec sessions or 50 simultaneous clientless sessions. Encryption processing is performed in software. The Cisco VPN 3005 does not have built-in upgrade capability.


Cisco CVPN3005-E/FE-BUN General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 3000

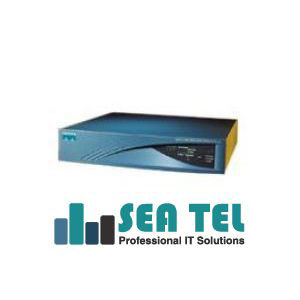

Product Name: VPN 3005 Concentrator
Product Type: VPN Concentrator

Cisco CVPN3005-E/FE-BUN Interfaces/Ports:
Number of Ports: 2
Interfaces/Ports: 1 x DB-9 Console Management
Interfaces/Ports: 1 x RJ-45 10/100Base-TX WAN
Interfaces/Ports: 1 x RJ-45 10/100Base-TX LAN

Cisco CVPN3005-E/FE-BUN Technical Information:
Firewall Protection: Packet Filter
VPN Support:
Simultaneous IPSec Users: 200
Simultaneous WebVPN (Clientless) Users: 50
End-to-End encrypted tunnels
Support for Easy VPN (client and network extension mode)

Cisco CVPN3005-E/FE-BUN Media & Performance:
Encryption Throughput: 4 Mbps

Cisco CVPN3005-E/FE-BUN Management & Protocols:
Protocols: IMAP
Protocols: HTTP
Protocols: NAT
Protocols: RIP
Protocols: POP
Protocols: L2TP
Protocols: FTP
Protocols: SMTP
Protocols: PPTP
Protocols: IPSec
Protocols: VRRP
Protocols: RIP v2.0
Protocols: OSPF

Cisco CVPN3005-E/FE-BUN Processor & Chipset:
Processor: 1 x Motorola PowerPC

Cisco CVPN3005-E/FE-BUN Memory:
Standard Memory: 32 MB
Maximum Memory: 64 MB
Memory Technology: DRAM

Cisco CVPN3005-E/FE-BUN Controls/Indicators:
Status Indicators:
Front panel: Unit status indicator
Cisco VPN 3005 Rear panel: Status LEDs for Ethernet ports
Front panel: Unit status indicator
Cisco VPN 3005 Rear panel: Status LEDs for Ethernet ports

Cisco CVPN3005-E/FE-BUN Power Description:
Input Voltage: 110 V AC
Input Voltage: 220 V AC
Input Voltage Range: 100V AC to 240V AC
Frequency: 50 Hz or 60 Hz
Power Consumption: 15 Wto 25 W Operating
Power Source: Power Supply

Cisco CVPN3005-E/FE-BUN Environmental Conditions:
Temperature: 32 degrees F (0.0 degrees C) to 131 degrees F (55.0 degrees C) Operating
Temperature: -40 degrees C (-40.0 degrees F) to 70 degrees C (158.0 degrees F) Storage
Temperature: -4 degrees F (-20.0 degrees C) to 176 degrees F (80.0 degrees C) Storage
Humidity: 0 to 95% Non-condensing Operating
Thermal Dissipation: 51.22 BTU/h @ 15W Minimum
Thermal Dissipation: 85.36 BTU/h @ 25W Maximum

Cisco CVPN3005-E/FE-BUN Physical Characteristics:
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Dimensions: 1.75 Height x 17.5 Width x 11.5 Depth
Shipping Dimensions: 9.5 Height x 16.75 Width x 22.75 Depth
Weight: 8.5 lb
Shipping Weight: 16.37 lb
