WAG54GX2-EU

Manufacturer Part#: Cisco WAG54GX2-EU

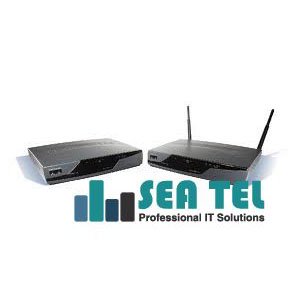

WAG54GX2-EU Wireless Router

WAG54GX2-EU Wireless Router - 1 x WAN, 4 x LAN

Wireless-G WAG54GX2 ADSL Gateway with SRX200 is the all-in-one solution for Internet connectivity. The ADSL 2.0 Modem function gives you a blazing fast connection to the Internet, far faster than a dial-up, and without tying up your phone line. The Router function lets share your high-speed Internet connection with all the PCs in the house.

Cisco WAG54GX2-EU General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Model: WAG54GX2
Product Name: Wireless-G WAG54GX2 ADSL Gateway with SRX200
Product Type: Wireless Router

Cisco WAG54GX2-EU Wireless Specifications:
Wireless Technology: IEEE 802.11b/g
Antenna: 2 x 3.3dBi Omni-directional Dipole Antenna Non-detachable
Frequency Band/Bandwidth: 2.4 GHz IEEE 802.11b/g ISM Band
Transmission Speed: 108Mbps

Cisco WAG54GX2-EU Interfaces/Ports:
Interfaces/Ports: 1 x RJ-11 WAN
Interfaces/Ports: 4 x RJ-45 Auto-sensing/Auto MDI/MDI-X LAN

Cisco WAG54GX2-EU Media & Performance:
Connectivity Media: Category 5 UTP
Data Transfer Rate: 100Mbps Fast Ethernet
Data Transfer Rate: 10Mbps Ethernet
Data Transfer Rate: 1.5Mbps G.lite Downstream
Data Transfer Rate: 512Kbps G.lite Upstream
Data Transfer Rate: 12Mbps ADSL2 Downstream
Data Transfer Rate: 24Mbps ADSL2+ Downstream
Data Transfer Rate: 1Mbps ADSL2 Upstream
Data Transfer Rate: 8Mbps G.dmt Downstream
Data Transfer Rate: 832Kbps G.dmt Upstream
Data Transfer Rate: 1Mbps ADSL2+ Upstream

Cisco WAG54GX2-EU Management & Protocols:
Management:
Web Based Interface
Remote Management via Web services
Configuration is a snap with the web browser-based configuration utility
Web Based Interface
Remote Management via Web services
Configuration is a snap with the web browser-based configuration utility

Cisco WAG54GX2-EU Physical Characteristics:
Dimensions: 5.51 x 5.51 x 1.06
Weight: 0.6 lb
