CISCO1811W-AG-C/K9

Manufacturer Part#: Cisco CISCO1811W-AG-C/K9

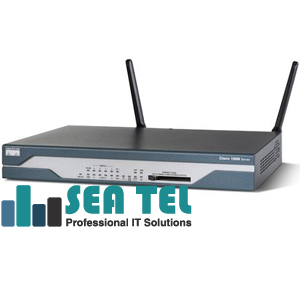

CISCO1811W-AG-C/K9 Wireless Router

CISCO1811W-AG-C/K9
The best-in-class Cisco 1811 Fixed Configuration Integrated Services Router architecture has been specifically designed to meet requirements of small to medium-sized businesses (SMBs), enterprise branch offices, and service provider-managed services applications for delivery of concurrent services at wire-speed performance. The integrated secure systems architecture of the Cisco 1811 Fixed Configuration Integrated Services Router delivers maximum business agility and investment protection.

Cisco CISCO1811W-AG-C/K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 1800
Product Model: 1811
Product Name: 1811 Fixed Configuration Integrated Services Wireless Router
Product Type: Wireless Security Router

Cisco CISCO1811W-AG-C/K9 Wireless Specifications:
Wireless Technology: Wi-Fi IEEE 802.11a/b/g
Antenna: 2 x 2.2dBi Dipole Antenna
Antenna Range: 320 ft@ 1Mbps Indoors
Frequency Band/Bandwidth: 5 GHz IEEE 802.11a UNII Band FCC
Frequency Band/Bandwidth: 2.4 GHz IEEE 802.11b/g ISM Band FCC
Transmission Speed: 54Mbps

Cisco CISCO1811W-AG-C/K9 Interfaces/Ports:
Interfaces/Ports: 8 x RJ-45 10/100Base-TX LAN
Interfaces/Ports: 2 x RJ-45 10/100Base-TX WAN
Interfaces/Ports: 2 x USB
Interfaces/Ports: 1 x Auxiliary Management
Interfaces/Ports: 1 x Console Management

Cisco CISCO1811W-AG-C/K9 Media & Performance:
Connectivity Media: 10/100Base-TX Twisted Pair
Data Transfer Rate: 10Mbps Ethernet
Data Transfer Rate: 100Mbps Fast Ethernet

Cisco CISCO1811W-AG-C/K9 I/O Expansions:
Expansion Slots: (1 Total) CompactFlash (CF) Card

Cisco CISCO1811W-AG-C/K9 Management & Protocols:
Cisco Router and Security Device Manager (SDM)
CiscoWorks VPN/Security Management Solution (VMS)
Cisco IP Solution Center (ISC)
CiscoWorks 2000
CiscoView
GUI-based Network Management
Cisco Router and Security Device Manager (SDM)
CiscoWorks VPN/Security Management Solution (VMS)
Cisco IP Solution Center (ISC)
CiscoWorks 2000
CiscoView
GUI-based Network Management

Cisco CISCO1811W-AG-C/K9 Power Description:
Input Voltage: 100 V AC to 240 V AC
Power Supply: Internal

Cisco CISCO1811W-AG-C/K9 Physical Characteristics:
Form Factor: Wall-mountable
Form Factor: 1U Rack-mountable
Form Factor: Desktop
Dimensions: 1.89 Height x 12.74 Width x 9.7 Depth - Height with rubber feet
Dimensions: 1.75 Height x 12.74 Width x 9.7 Depth - Height without rubber feet
Weight: 6.1 lb Maximum
