AIR-MP21G-A-K9

Manufacturer Part#: Cisco AIR-MP21G-A-K9

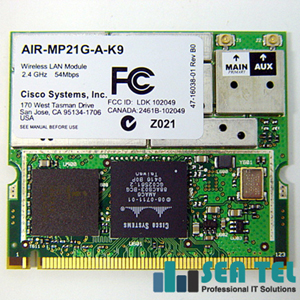

AIR-MP21G-A-K9 Cisco Wireless Module

AIR-MP21G-A-K9 - 802.11g Upgrade Radio Module for AP1200/AP1100, FCC Cnfg

Cisco Aironet 802.11g Radio Module allow customers to take advantage of the new 802.11g technology, with its higher 54-Mbps throughput and its 802.11b backward capability, while continuing to use their existing Cisco Aironet WLAN infrastructures. Because 802.11g and 802.11b operate in the same 2.4-GHz unlicensed band, migrating to 802.11g is an affordable choice for customers with existing Cisco Aironet 1100 Series and 1200 Series access points. As bandwidth and scalability requirements grow, network administrators can strategically migrate existing 802.11b access points quickly and seamlessly as time and budgets allow.

Cisco AIR-MP21G-A-K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Aironet
Product Name: Aironet Mini-PCI Radio Module
Product Type: Wireless Module

Cisco AIR-MP21G-A-K9 Wireless Specifications:
Wireless Technology: Wi-Fi - IEEE 802.11b/g
Antenna: 2.2dBi Diversity Dipole Antenna
Antenna Range: 90 ft@ 54Mbps Indoors IEEE 802.11g
Antenna Range: 300 ft@ 6Mbps Indoors IEEE 802.11g
Antenna Range: 160 ft@ 11Mbps Indoors IEEE 802.11b
Antenna Range: 410 ft@ 1 Mbps Indoors IEEE 802.11b
Antenna Range: 1300 ft@ 6Mbps Outdoors IEEE 802.11g
Antenna Range: 250 ft@ 54Mbps Outdoors IEEE 802.11g
Antenna Range: 2000 ft@ 1 Mbps Outdoors IEEE 802.11b
Antenna Range: 1000 ft@ 11Mbps Outdoors IEEE 802.11b
Frequency Band/Bandwidth: 2.41 GHz to 2.46 GHz IEEE 802.11b/g ISM Band FCC
Transmission Speed: 54Mbps
Transmission Speed Details: 54Mbps Auto-fallback IEEE 802.11g
Transmission Speed Details: 6Mbps IEEE 802.11g
Transmission Speed Details: 11Mbps Auto-fallback IEEE 802.11b
Transmission Speed Details: 1Mbps IEEE 802.11b
Transmit Power: 20 dBm IEEE 802.11b
Transmit Power: 15 dBm IEEE 802.11g

AIR-MP21G-A-K9 Wireless Security:
Cisco Wireless Security Suite
AES
Cisco Wireless Security Suite
AES

AIR-MP21G-A-K9 Modulation:
Direct Sequence Spread Spectrum (DSSS):
•DBPSK @ 1 Mbps
•DQPSK @ 2 Mbps
•CCK @ 5.5 and 11 Mbps

AIR-MP21G-A-K9 Orthogonal Frequency Divisional Multiplexing (OFDM):
•BPSK @ 6 and 9 Mbps
•QPSK @ 12 and 18 Mbps
•16-QAM @ 24 and 36 Mbps
•64-QAM @ 48 and 54 Mbps

Cisco AIR-MP21G-A-K9 Physical Characteristics:
Dimensions: 2.01 Height x 2.35 Width x 0.19 Thickness
Weight: 0.56 oz

Cisco AIR-MP21G-A-K9 Miscellaneous:
Antenna Connectors: Ultra-mini SMT U.FL
Antenna Connectors: Ultra-mini SMT U.FL

AIR-MP21G-A-K9 System Requirements:
1 x Mini-PCI Type IIIA Slot

AIR-MP21G-A-K9 Compatibility:
Aironet 1100 Series access points
Aironet 1200 Series access points
Aironet 1100 Series access points
Aironet 1200 Series access points

AIR-MP21G-A-K9 Certifications & Standards:
FCC Bulletin CET-65C
RSS-102
Wi-Fi
IEEE 802.11b
IEEE 802.11g

AIR-MP21G-A-K9 Safety:
UL 1950
CSA 22.2 No. 950-95
IEC 60950
EN 60950

AIR-MP21G-A-K9 Radio Approvals:
FCC Part 15.247
RSS-210 (Canada)
EN 300.328 (Europe)
ARIB-STD 33 (Japan)
ARIB-STD 66 (Japan)
AS/NZS 3548 (Australia and New Zealand)

AIR-MP21G-A-K9 EMI and Susceptibility (Class B):
FCC Part 15.107 and 15.109
ICES-003 (Canada)
VCCI (Japan)
EN 301.489-1 and -17 (Europe)

AIR-MP21G-A-K9 FCC Bulletin CET-65C:
RSS-102
Wi-Fi
IEEE 802.11b
IEEE 802.11g

AIR-MP21G-A-K9 Safety:
UL 1950
CSA 22.2 No. 950-95
IEC 60950
EN 60950

AIR-MP21G-A-K9 Radio Approvals:
FCC Part 15.247
RSS-210 (Canada)
EN 300.328 (Europe)
ARIB-STD 33 (Japan)
ARIB-STD 66 (Japan)
AS/NZS 3548 (Australia and New Zealand)

AIR-MP21G-A-K9 EMI and Susceptibility (Class B):
FCC Part 15.107 and 15.109
ICES-003 (Canada)
VCCI (Japan)
EN 301.489-1 and -17 (Europe)
