CISCO3662-AC

Manufacturer Part#: Cisco CISCO3662-AC

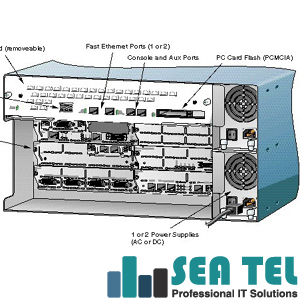

CISCO3662-AC Cisco 3600 Series Multiservice Platforms

CISCO3662-AC  Dual 10/100 E Cisco 3660 6-Slot Modular Router-Ac With Ip Sw

Cisco 3660 Series platform improves on the density, performance, robustness and serviceability of the very successful Cisco 2600 and 3600 Series family of products, extending these capabilities for use in larger branch-office applications or for telco-managed services as customer premise equipment (CPE).

Cisco CISCO3662-AC General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 3600
Product Name: 3662 Router
Product Type: Router


Cisco CISCO3662-AC Interfaces/Ports:
Number of Ports: 2
Fast Ethernet Port: Yes
Interfaces/Ports: 2 x RJ-45 10/100Base-TX 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 Auxiliary Management

Cisco CISCO3662-AC Media & Performance:
Connectivity Media: Cable Twisted Pair
Forwarding/Filtering Rate: 120Kpps

Cisco CISCO3662-AC I/O Expansions:
Number of Expansion Slots: 10
Expansion Slots: (2 Total) AIM
Expansion Slots: (6 Total) Network Module
Expansion Slots: (2 Total) PC Card

Cisco CISCO3662-AC Management & Protocols
Management:
Support for CiscoWorks, CiscoWorks2000, and CiscoView
Enhanced setup feature
Auto install configures remote units automatically across aWAN connection
Support for the Cisco Discovery Protocol (CDP)
Support for CiscoWorks, CiscoWorks2000, and CiscoView
Enhanced setup feature
Auto install configures remote units automatically across aWAN connection
Support for the Cisco Discovery Protocol (CDP)

Protocols: TCP/IP
Protocols: RSVP

Cisco CISCO3662-AC Processor & Chipset:
Processor: 1 x QED RM5271 RISC 255MHz

Cisco CISCO3662-AC Memory:
Standard Memory: 32MB
Maximum Memory: 256MB
Memory Technology: SDRAM
Flash Memory: 16 MB

Cisco CISCO3662-AC Controls/Indicators:
Status Indicators:
Interface activity status
System status
Individual power-supply status
Interface activity status
System status
Individual power-supply status

Cisco CISCO3662-AC Software:
Operating System:
Cisco 3660 Series IOS IP
Cisco 3660 Series IOS IP

Cisco CISCO3662-AC Power Description:
Input Voltage: 110V AC
Input Voltage: 220V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 2A @ 200V AC
Input Current: 4A @ 100V AC
Frequency: 50 Hz to 60 Hz
Power Consumption: 250W Maximum
Power Source: Power Supply
Redundant Power Supply: Yes

Cisco CISCO3662-AC Environmental Conditions:
Temperature: -13 degrees F (-25.0 degrees C) to 158 degrees F (70.0 degrees C) Storage
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 5% to 95% Non-condensing Relative Humidity

Cisco CISCO3662-AC Physical Characteristics:
Compatible Rack Unit: 5U
Form Factor: Rack-mountable
Form Factor: Desktop
Dimensions: 8.75 Height x 17.5 Width x 11.5 Depth
Shipping Dimensions: 14 Height x 14 Width x 22 Depth
Weight: 43 lb
Shipping Weight: 26 lb
