Product Description

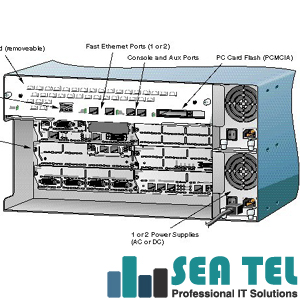

Manufacturer Part#: Cisco CISCO3661-DC
CISCO3661-DC Cisco 3600 Series Multiservice Platforms
CISCO3661-DC - 10/100 E Cisco 3660 6-Slot Modular Router-Dc With Ip Sw
Cisco CISCO3661-DC General Information
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 3600
Product Name: 3661 Router
Product Type: Router
Cisco CISCO3661-DC Interfaces/Ports
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Cisco CISCO3661-DC Media & Performance
Connectivity Media: Cable Twisted Pair
Forwarding/Filtering Rate: 120Kpps
Cisco CISCO3661-DC I/O Expansions
Number of Expansion Slots: 10
Expansion Slots: (2 Total) AIM
Expansion Slots: (6 Total) Network Module
Expansion Slots: (2 Total) PC Card
Cisco CISCO3661-DC Management & Protocols
Management:
Support for CiscoWorks, CiscoWorks2000, and CiscoView
Enhanced setup feature
Auto install configures remote units automatically across aWAN connection
Support for the Cisco Discovery Protocol (CDP)
Support for CiscoWorks, CiscoWorks2000, and CiscoView
Enhanced setup feature
Auto install configures remote units automatically across aWAN connection
Support for the Cisco Discovery Protocol (CDP)
Protocols: TCP/IP
Protocols: RSVP
Cisco CISCO3661-DC Processor & Chipset
Processor: 1 x QED RM5271 RISC 255MHz
Cisco CISCO3661-DC Memory
Standard Memory: 32MB
Maximum Memory: 256MB
Memory Technology: SDRAM
Flash Memory: 16 MB
Cisco CISCO3661-DC Controls/Indicators
Status Indicators:
Interface activity status
System status
Individual power-supply status
Interface activity status
System status
Individual power-supply status
Cisco CISCO3661-DC Software
Operating System:
Cisco 3660 Series IOS IP
Cisco 3660 Series IOS IP
Cisco CISCO3661-DC Power Description
Input Voltage Range: 18V DC to 72V DC
Input Current: 7 A @ 36V DC to 60V DC
Input Current: 16 A @ 24V DC to 36V DC
Power Consumption: 250W Maximum
Power Source: Power Supply
Redundant Power Supply: Yes
Cisco CISCO3661-DC Environmental Conditions
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Temperature: -13 degrees F (-25.0 degrees C) to 158 degrees F (70.0 degrees C) Storage
Humidity: 5% to 95% Non-condensing Relative Humidity
Cisco CISCO3661-DC Physical Characteristics
Compatible Rack Unit: 5U
Form Factor: Rack-mountable
Form Factor: Desktop
Dimensions: 8.75 Height x 17.5 Width x 11.5 Depth
Shipping Dimensions: 16.5 Height x 18.3 Width x 22.5 Depth
Weight: 43 lb
Shipping Weight: 44 lb
CISCO3661-DC Cisco 3600 Series Multiservice Platforms
CISCO3661-DC - 10/100 E Cisco 3660 6-Slot Modular Router-Dc With Ip Sw
Cisco CISCO3661-DC General Information
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 3600
Product Name: 3661 Router
Product Type: Router
| Sea Tel International Co., Limited CISCO 3600 Series Router | |||
| CISCO3640-RPS | CISCO3662-DC-CO | 3620MBUNDLE-30DM | CISCO3620-RPS |
| CISCO3661-AC | CISCO3640-DC | 3620MBUNDLE-24DM | CISCO3661-DC |
| CISCO3620 | CISCO3640-CH | CPA3620 | CISCO3640A |
| CISCO3640A-DC | C3662-2FE/VPN/K9 | CISCO3620-CH | CISCO3662-AC |
| CISCO3662-DC | C3662-2FE/VPN/K8 | CISCO3640 | CISCO 3640 |
| CISCO3662-AC-CO | 3640MBUNDLE-8B-U | CISCO3640A-RPS | CISCO 3620 |
Cisco CISCO3661-DC Interfaces/Ports
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Cisco CISCO3661-DC Media & Performance
Connectivity Media: Cable Twisted Pair
Forwarding/Filtering Rate: 120Kpps
Cisco CISCO3661-DC I/O Expansions
Number of Expansion Slots: 10
Expansion Slots: (2 Total) AIM
Expansion Slots: (6 Total) Network Module
Expansion Slots: (2 Total) PC Card
Cisco CISCO3661-DC Management & Protocols
Management:
Support for CiscoWorks, CiscoWorks2000, and CiscoView
Enhanced setup feature
Auto install configures remote units automatically across aWAN connection
Support for the Cisco Discovery Protocol (CDP)
Support for CiscoWorks, CiscoWorks2000, and CiscoView
Enhanced setup feature
Auto install configures remote units automatically across aWAN connection
Support for the Cisco Discovery Protocol (CDP)
Protocols: TCP/IP
Protocols: RSVP
Cisco CISCO3661-DC Processor & Chipset
Processor: 1 x QED RM5271 RISC 255MHz
Cisco CISCO3661-DC Memory
Standard Memory: 32MB
Maximum Memory: 256MB
Memory Technology: SDRAM
Flash Memory: 16 MB
Cisco CISCO3661-DC Controls/Indicators
Status Indicators:
Interface activity status
System status
Individual power-supply status
Interface activity status
System status
Individual power-supply status
Cisco CISCO3661-DC Software
Operating System:
Cisco 3660 Series IOS IP
Cisco 3660 Series IOS IP
Cisco CISCO3661-DC Power Description
Input Voltage Range: 18V DC to 72V DC
Input Current: 7 A @ 36V DC to 60V DC
Input Current: 16 A @ 24V DC to 36V DC
Power Consumption: 250W Maximum
Power Source: Power Supply
Redundant Power Supply: Yes
Cisco CISCO3661-DC Environmental Conditions
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Temperature: -13 degrees F (-25.0 degrees C) to 158 degrees F (70.0 degrees C) Storage
Humidity: 5% to 95% Non-condensing Relative Humidity
Cisco CISCO3661-DC Physical Characteristics
Compatible Rack Unit: 5U
Form Factor: Rack-mountable
Form Factor: Desktop
Dimensions: 8.75 Height x 17.5 Width x 11.5 Depth
Shipping Dimensions: 16.5 Height x 18.3 Width x 22.5 Depth
Weight: 43 lb
Shipping Weight: 44 lb
