CISCO3640-DC

Manufacturer Part#: Cisco CISCO3640-DC

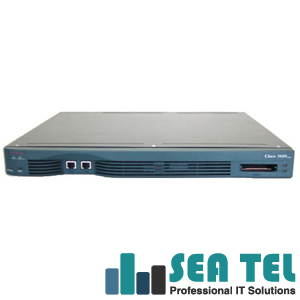

CISCO3640-DC 3600 Series Multiservice Platforms

CISCO3640-DC - Access Router

Cisco 3640 is the industry's first true multifunction platform with the versatility to support branch/enterprise hybrid dial access applications, LAN-to-LAN or routing applications, and multiservice applications in a single platform. It provides unprecedented modularity options with a broad range of available network modules, enormous flexibility with a variety of configurable options for customer-specific application scenarios, and, above all, high-performance to support any of these applications.


Cisco CISCO3640-DC General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 3600
Product Name: 3640 Modular Access Router
Product Type: Access Router

Cisco CISCO3640-DC Interfaces/Ports:
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 Auxiliary Management

Cisco CISCO3640-DC Media & Performance:
Forwarding/Filtering Rate: 70Kpps

Cisco CISCO3640-DC I/O Expansions:
Number of Expansion Slots: 6
Expansion Slots: (2 Total) PC Card
Expansion Slots: (4 Total) Network Module

Cisco CISCO3640-DC Processor & Chipset:
Processor: 1 x IDT R4700 100MHz RISC

Cisco CISCO3640-DC Memory:
Standard Memory: 32MB
Maximum Memory: 128MB
Memory Technology: DRAM
Flash Memory: 16 MB

Cisco CISCO3640-DC Controls/Indicators:
Controls: 1 x Power Switch
Status Indicators:
LEDs:

•Power
•RPS status
•Network activity
•Interface status

Cisco CISCO3640-DC Software
Operating System:
Cisco IOS Release 11.1(7)AA with a variety of Cisco IOS feature sets (IP through Enterprise with APPN

Cisco CISCO3640-DC Power Description
Input Voltage Range: -38V DC to -75V AC
Input Current: 5A
Power Consumption: 140W Maximum
Redundant Power Supply: Yes

Cisco CISCO3640-DC Environmental Conditions:
Temperature: 0 degrees C (32.0 degrees F) to 40 degrees C (104.0 degrees F) Operating
Temperature: -25 degrees C (-13.0 degrees F) to 70 degrees C (158.0 degrees F) Non-operating
Humidity: 5% to 95% Relative Humidity

Cisco CISCO3640-DC Physical Characteristics:
Form Factor: Rack-mountable
Form Factor: Desktop
Form Factor: Wall-mountable
Dimensions: 3.44 Height x 17.5 Width x 15.75 Depth
Weight: 23 lb
