WS-C4003-S1-82

Manufacturer Part#: Cisco WS-C4003-S1-82

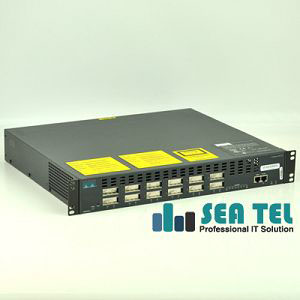

Cisco Catalyst 4000 Series switch WS-C4003-S1-82
WS-C4003-S1-82 Catalyst 4003 Chassis, Ac P/S,Sup.Eng.I, 80 10/100 Fe + 2 Ge

The Catalyst 4003 WS-C4003-S1-82 chassis offers:
•Flexible three-slot modular chassis, with one slot reserved for a supervisor engine and two remaining slots for switched port modules
•Two power supply bays that support redundant (option), load-sharing, fault-tolerant AC or DC power supplies
•Hot-swappable fan tray bay
•Familiar Catalyst 6500/5000 look and feel with consistent interfaces and indicators
•Up to 96 10/100 or 100-FX Fast Ethernet ports, or up to 36 Gigabit Ethernet ports, can be installed into one chassis
•Up to 96 10/100/1000BaseT triple-speed auto-sensing ports or 96 1000BASE-LX ports
•18 million packets-per-second throughput, with 24 Gbps switching bandwidth
•Optional integrated WAN and voice services
•Modular chassis flexibility and the variety of module speed mixes

Cisco WS-C4003-S1-82 Management & Protocols:
Management:
CiscoWorks 2000 Network Management Suite
CiscoWorks for Switched Internetworks (CWSI)
Cisco Discovery Protocol
Cisco Virtual Trunking Protocol (VTP)
Simple Network Management Protocol (SNMP) agent v1 (RFCs 1155-1157)
SNMPv2c
Cisco workgroup Management Information Base (MIB)
Ethernet MIB (RFC 1643)
Ethernet repeater MIB (RFC 1516)
SNMP MIB II (RFC 1213)
Remote monitoring (RMON) (RFC 1757)
Remote monitoring (RMON II) (RFC 2021)
Interface table (RFC 1573)
Bridge MIB (RFC 1493)
SMT 7.3 (RFC 1285)
Switched Port Analyzer (SPAN)
Enhanced Switched Port Analyzer (ESPAN)
Port snooping and connection steering
Text-based command-line interface based on the familiar Catalyst 5000 series interface
Standard Cisco IOS security capabilities: passwords and TACACS+
Telnet, Trivial File Transfer Protocol (TFTP), BOOTP for management access
CiscoWorks 2000 Network Management Suite
CiscoWorks for Switched Internetworks (CWSI)
Cisco Discovery Protocol
Cisco Virtual Trunking Protocol (VTP)
Simple Network Management Protocol (SNMP) agent v1 (RFCs 1155-1157)
SNMPv2c
Cisco workgroup Management Information Base (MIB)
Ethernet MIB (RFC 1643)
Ethernet repeater MIB (RFC 1516)
SNMP MIB II (RFC 1213)
Remote monitoring (RMON) (RFC 1757)
Remote monitoring (RMON II) (RFC 2021)
Interface table (RFC 1573)
Bridge MIB (RFC 1493)
SMT 7.3 (RFC 1285)
Switched Port Analyzer (SPAN)
Enhanced Switched Port Analyzer (ESPAN)
Port snooping and connection steering
Text-based command-line interface based on the familiar Catalyst 5000 series interface
Standard Cisco IOS security capabilities: passwords and TACACS+
Telnet, Trivial File Transfer Protocol (TFTP), BOOTP for management access

Protocols: HSRP
Protocols: CGMP
Protocols: CDP
Protocols: VTP
Protocols: IGMP
Protocols: PAgP
Protocols: TACACS+
Protocols: ISL
Protocols: DHCP

Cisco WS-C4003-S1-82 Memory:
Flash Memory: 12MB

Cisco WS-C4003-S1-82 Software:
Operating System:
Catalyst 4K Supervisor Flash Image, Release 6.3.5 (SC4K-SUP-6.3.5)
Catalyst 4K Supervisor Flash Image, Release 6.3.5 (SC4K-SUP-6.3.5)


Cisco WS-C4003-S1-82 Power Description:
Input Voltage: 110V AC
Input Voltage: 220V AC
Input Current: 3A @ 240V AC
Input Current: 6A @ 100V AC
Frequency: 50 Hz to 60 Hz
Power Source: Power Supply
Redundant Power Supply: Yes

Cisco WS-C4003-S1-82 Environmental Conditions:
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Temperature: -40 degrees F (-40.0 degrees C) to 167 degrees F (75.0 degrees C) Storage
Humidity: 10% to 90% Non-condensing Relative Humidity
Altitude: -196.84 ft to 13123.32 ft Operating
Thermal Dissipation: 1800 BTU/h @ 530W

Cisco WS-C4003-S1-82 Physical Characteristics:
Dimensions: 10.5 Height x 17.25 Width x 11.81 Depth
Shipping Dimensions: 17 Height x 17 Width x 23 Depth
Weight: 40lb
Shipping Weight: 58.5 lb

Cisco WS-C4003-S1-82 Miscellaneous:
Additional Information: Item Included:
•Catalyst 4K Supervisor Flash Image, Release 6.3.5 (SC4K-SUP-6.3.5)
•Catalyst 4000 10/100 Auto Module, 48-Ports (RJ-45) (WS-X4148-RJ)
•Catalyst 4000 E/FE/GE Module,2- GE(GBIC),32- 10/100 (RJ-45) (WS-X4232-GB-RJ)
•Catalyst 4000 Supervisor I,Console(DB-25) Mgt.(10BT,RJ-45) (WS-X4012)
•Catalyst 4000 AC Power Supply (WS-X4008)
•Rack and cable guide hardware included

Certifications & Standards: Safety:
•UL 1950
•CAN/CSA-C22.2 No. 950
•EN 60950
•IEC 60950
•TS 001
•AS/NZS 3260

EMC:
•FCC Part 15 (CFR 47) Class A
•ICES-003 Class A
•EN55022 Class A
•CISPR22 Class A
•AS/NZS 3548 Class A
•VCCI Class A
•EN55022
•AS/NZS 3548 Class A

Industry EMC, Safety, and Environmental Standards:
•GR-63-Core NEBS Level 3
•GR-1089-Core Level 3
•ETS 300 019 Storage Class 1.1
•ETS 300 019 Transportation Class 2.3
•ETS 300 019 Stationary Use Class 3.1
•ETS 300 386

Telecom (E1):
•CTR 12/13
•CTR 4
•ACA TS016

Telecom (T1):
•FCC Part 68
•Canada CS-03
•JATE Green Book

•Ethernet: IEEE 802.3, 10BASE-T
•Fast Ethernet: IEEE 802.3u, 100BASE-TX
•Fast Ethernet: IEEE 802.3, 100BASE-FX
•Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab
•1000BASE-X (GBIC):
- 1000BASE-SX
- 1000BASE-LX/LH
- 1000BASE-ZX
•VLAN Trunking/tagging:
- IEEE 802.3ad
- IEEE 802.1Q
•Spanning-Tree Protocol:
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
•Security:
- IEEE 802.1x

Cisco WS-C4003-S1-82 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Catalyst
Product Series: 4000
Product Name: Catalyst 4003 Ethernet Switch
Product Type: Ethernet Switch

Cisco WS-C4003-S1-82 Interfaces/Ports:
Number of Ports: 80
Fast Ethernet Port: Yes
Interfaces/Ports: 80 x RJ-45 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 10Base-T Management
Interfaces/Ports: 1 x DB-25 Console Management

Cisco WS-C4003-S1-82 Media & Performance:
Connectivity Media: Cable
Performance: 24Gbps Switching Fabric
Performance: 18Mpps Throughput

Cisco WS-C4003-S1-82 I/O Expansions:
Number of Expansion Slots: 5
Expansion Slots: (1 Total) Supervisor Engine
Expansion Slots: (2 Total) GBIC
Expansion Slots: (2 Total) Switching Module
Modules: 1 x 34-E/FE/GE (WS-X4232-GB-RJ)
Modules: 1 x 48-10/100 (WS-X4148-RJ)
Modules: 1 x Supervisor I (WS-X4012)

Cisco WS-C4003-S1-82 Management & Protocols:
Manageable: Yes
