WS-C4003

Manufacturer Part#: Cisco WS-C4003

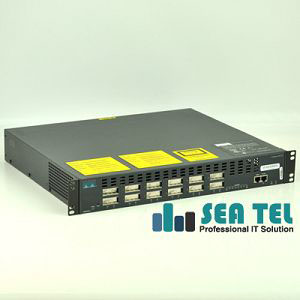

WS-C4003 Cisco Catalyst 4000 Series switch
WS-C4003 Catalyst 4000 Chassis (3-Slot),Single Ac Power Supply

 Cisco WS-C4003 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Catalyst
Product Series: 4000
Product Name: Catalyst 4003 Ethernet Switch
Product Type: Ethernet Switch

Cisco WS-C4003 Interfaces/Ports:
Interfaces/Ports: LAN

Cisco WS-C4003 Media & Performance:
Performance: 24Gbps Switching Fabric
Performance: 18Mpps Throughput

Cisco WS-C4003 I/O Expansions:
Number of Expansion Slots: 3
Expansion Slots: (2 Total) Switching Module
Expansion Slots: (1 Total) Supervisor Engine

Cisco WS-C4003 Management & Protocols:
Manageable: Yes
Management:
CiscoWorks 2000 Network Management Suite
CiscoWorks for Switched Internetworks (CWSI)
Cisco Discovery Protocol
Cisco Virtual Trunking Protocol (VTP)
Simple Network Management Protocol (SNMP) agent v1 (RFCs 1155-1157)
SNMPv2c
Cisco workgroup Management Information Base (MIB)
Ethernet MIB (RFC 1643)
Ethernet repeater MIB (RFC 1516)
SNMP MIB II (RFC 1213)
Remote monitoring (RMON) (RFC 1757)
Remote monitoring (RMON II) (RFC 2021)
Interface table (RFC 1573)
Bridge MIB (RFC 1493)
SMT 7.3 (RFC 1285)
Switched Port Analyzer (SPAN)
Enhanced Switched Port Analyzer (ESPAN)
Port snooping and connection steering
Text-based command-line interface based on the familiar Catalyst 5000 series interface
Standard Cisco IOS security capabilities: passwords and TACACS+
Telnet, Trivial File Transfer Protocol (TFTP), BOOTP for management access
CiscoWorks 2000 Network Management Suite
CiscoWorks for Switched Internetworks (CWSI)
Cisco Discovery Protocol
Cisco Virtual Trunking Protocol (VTP)
Simple Network Management Protocol (SNMP) agent v1 (RFCs 1155-1157)
SNMPv2c
Cisco workgroup Management Information Base (MIB)
Ethernet MIB (RFC 1643)
Ethernet repeater MIB (RFC 1516)
SNMP MIB II (RFC 1213)
Remote monitoring (RMON) (RFC 1757)
Remote monitoring (RMON II) (RFC 2021)
Interface table (RFC 1573)
Bridge MIB (RFC 1493)
SMT 7.3 (RFC 1285)
Switched Port Analyzer (SPAN)
Enhanced Switched Port Analyzer (ESPAN)
Port snooping and connection steering
Text-based command-line interface based on the familiar Catalyst 5000 series interface
Standard Cisco IOS security capabilities: passwords and TACACS+
Telnet, Trivial File Transfer Protocol (TFTP), BOOTP for management access

Protocols: IGMP
Protocols: CGMP
Protocols: HSRP
Protocols: VTP
Protocols: CDP
Protocols: DHCP
Protocols: ISL
Protocols: TACACS+
Protocols: PAgP

Cisco WS-C4003 Power Description

Input Voltage: 220V AC
Input Voltage: 110V AC
Input Current: 6A @ 100V AC
Input Current: 3A @ 240V AC
Frequency: 50 Hz to 60 Hz
Power Source: Power Supply
Redundant Power Supply: Yes

Cisco WS-C4003 Environmental Conditions

Temperature: -40 degrees F (-40.0 degrees C) to 167 degrees F (75.0 degrees C) Storage
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 10% to 90% Non-condensing Relative Humidity
Altitude: -196.84 ft to 13123.32 ft Operating

Cisco WS-C4003 Physical Characteristics

Dimensions: 10.5 Height x 17.25 Width x 12 Depth
Shipping Dimensions: 9 Height x 20.25 Width x 23 Depth
Weight: 40lb
Shipping Weight: 49.5 lb

Cisco WS-C4003 Miscellaneous

Additional Information: Item Included:
•Catalyst 4000 AC Power Supply (WS-X4008)

Certifications & Standards: Safety:
•UL 1950
•CAN/CSA-C22.2 No. 950
•EN 60950
•IEC 60950
•TS 001
•AS/NZS 3260

EMC:
•FCC Part 15 (CFR 47) Class A
•ICES-003 Class A
•EN55022 Class A
•CISPR22 Class A
•AS/NZS 3548 Class A
•VCCI Class A
•EN55022
•AS/NZS 3548 Class A

Industry EMC, Safety, and Environmental Standards:
•GR-63-Core NEBS Level 3
•GR-1089-Core Level 3
•ETS 300 019 Storage Class 1.1
•ETS 300 019 Transportation Class 2.3
•ETS 300 019 Stationary Use Class 3.1
•ETS 300 386

Telecom (E1):
•CTR 12/13
•CTR 4
•ACA TS016

Telecom (T1):
•FCC Part 68
•Canada CS-03
•JATE Green Book

•Ethernet: IEEE 802.3, 10BaseT
•Fast Ethernet: IEEE 802.3u, 100BaseTX
•Fast Ethernet: IEEE 802.3, 100BaseFX
•Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x
•VLAN Trunking/Tagging: IEEE 802.1Q
•Spanning-Tree Protocol: IEEE 802.1D

•1000BaseX (GBIC)
- 1000BaseSX
- 1000BaseLX/LH
