WS-C1912C-EN

Manufacturer Part# : WS-C1912C-EN

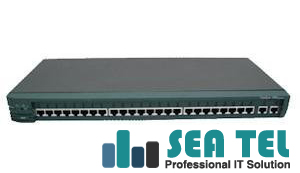

WS-C1912C-EN Cisco 1900 Series Switch
WS-C1912C-EN Ethernet Switch - 12 x 10Base-T, 1 x 100Base-TX, 1 x 100Base-FX

Cisco Systems Catalyst 1900 series switches, available in Standard and Enterprise editions, provide industry-leading performance and Cisco end-to-end network integration at an exceptionally affordable price. Enterprise Edition software enables these switches to deliver unmatched network configuration flexibility and scalability through embedded Cisco IOS technologies, delivering comprehensive management and security, bandwith optimization, networked multimedia, and virtual LAN (VLAN) support

Cisco WS-C1912C-EN Environmental Conditions:
Temperature: 23 degrees F (-5.0 degrees C) to 113 degrees F (45.0 degrees C) Operating
Humidity: 10% to 85% Non-condensing Operating
Altitude: 9842 ft Maximum Operating

Cisco WS-C1912C-EN Physical Characteristics:
Color: Black
Dimensions: 1.73 Height x 17.5 Width x 8.25 Depth
Weight: 7lb

Cisco WS-C1912C-EN Miscellaneous:
Certifications & Standards:
•IEEE 802.3
•IEEE 802.3U

Safety:
•AS/NZS 3260, TS001
•UL 1950/CSA 22.2 No. 950
•IEC 950/EN 60950
•NOM 019

EMI:
•FCC Part 15 Class B
•EN 55022B Class B (CISPR 22 Class B)
•VCCI Class II
•AS/NRZ 3548 Class B

Cisco WS-C1912C-EN Original Manufacturer Warranty:
Standard Warranty: Lifetime Limited

Parts Warranty/Labor: 5 Year - Fan and Power supply
Additional Warranty Information:
•In the event of discontinuance of product manufacture, Cisco warranty support is limited to five (5) years from the announcement of discontinuance


Cisco WS-C1912C-EN General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Catalyst
Product Series: 1900
Product Name: Catalyst 1912C-EN Ethernet Switch
Product Type: Ethernet Switch

Cisco WS-C1912C-EN Interfaces/Ports:
Number of Ports: 12
Ethernet Port: Yes
Interfaces/Ports: 12 x RJ-45 10Base-T LAN
Interfaces/Ports: 1 x DB-15 AUI Management
Interfaces/Ports: 1 x RJ-45 100Base-TX LAN
Interfaces/Ports: 1 x SC 100Base-FX LAN
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x DB-9 Serial Management

Cisco WS-C1912C-EN Media & Performance:
Connectivity Media: 62.5/50 micron Multi-mode Fiber 100Base-FX
Connectivity Media: 50/125 micron Multi-mode Fiber 100Base-FX
Connectivity Media: Category 4 UTP 10Base-T
Connectivity Media: Category 3 UTP 10Base-T
Connectivity Media: Category 5 UTP 10/100Base-TX
Distance Support: 1.24Mile Multi-mode Fiber
Distance Support: 328.08ft UTP

Cisco WS-C1912C-EN I/O Expansions:
Modules: Not Applicable

Cisco WS-C1912C-EN Network & Communication:
Layer Support: 2

Cisco WS-C1912C-EN Management & Protocols:
Manageable: Yes

Management: Remote Management Protocol:
•SNMP
•RMON

Protocols: Spanning Tree Protocol:
Security Features:
•VLAN support

Cisco WS-C1912C-EN Controls/Indicators:
Status Indicators:
•Port status
•Link activity
•Collision status
•Power

Cisco WS-C1912C-EN Power Description:
Input Voltage: 110V AC
Input Voltage: 220V AC
Input Current: 1A @ 12V DC
Input Current: 6A @ 5V DC
Frequency: 50 Hz or 60 Hz
Power Consumption: 50 W Operating
Power Source: Power Supply

Cisco WS-C1912C-EN Environmental Conditions:
Temperature: -13 degrees F (-25.0 degrees C) to 158 degrees F (70.0 degrees C) Storage
