PWR-C45-1300ACV

PWR-C45-1300ACV

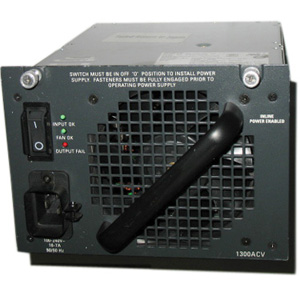

CISCO POWER SUPPLY PWR-C45-1300ACV

Cisco PWR-C45-1300ACV General Information
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Name: Catalyst 4500 Series Power Supply
Cisco PWR-C45-1300ACV Technical Information
Holdup Time: 20 ms

Cisco PWR-C45-1300ACV Power Description
Input Voltage: 240V AC
Input Voltage Range: 100V AC to 240V AC
Output Voltage: 48V DC
Output Voltage: 12V DC
Output Power: 1300 W

Cisco PWR-C45-1300ACV Controls/Indicators
Status Indicators:
Good
Fail
Good
Fail


Cisco PWR-C45-1300ACV Environmental Conditions
Temperature: -40 degrees F (-40.0 degrees C) to 167 degrees F (75.0 degrees C) Storage
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 10% to 90% Non-condensing Relative Humidity
Altitude: -196.84 ft to 13123.32 ft Operating

Cisco PWR-C45-1300ACV Physical Characteristics

Hot Swappable Power Supply: Yes
Shipping Dimensions: 10 Height x 12.5 Width x 18 Depth
Shipping Weight: 17 lb

Cisco PWR-C45-1300ACV Miscellaneous

Additional Information:
Purpose: data & inline power
Cisco Phones Supported: 211
Integrated In-line Power: Yes (Up to 800W)
KVA rating (Maximum): 1.76 KVA
Output Power Redundant Mode (Data): 1000W + 40W
Output Power Redundant Mode (In-line power): 800W max. per power supply
Output Power Combined Mode (Data): 2166W
Output Power Combined Mode (In-line power): 1333W (max.)
Heat Dissipation: 1568 BTU/Hr
Simple Network Management Protocol (SNMP) Management Information Base (MIB) supported
Purpose: data & inline power
Cisco Phones Supported: 211
Integrated In-line Power: Yes (Up to 800W)
KVA rating (Maximum): 1.76 KVA
Output Power Redundant Mode (Data): 1000W + 40W
Output Power Redundant Mode (In-line power): 800W max. per power supply
Output Power Combined Mode (Data): 2166W
Output Power Combined Mode (In-line power): 1333W (max.)
Heat Dissipation: 1568 BTU/Hr
Simple Network Management Protocol (SNMP) Management Information Base (MIB) supported

System Requirements: Minimum IOS software requirement:
•Cisco IOS Software Version 12.1(12c)EW

Minimum CATOS software requirement:
•Cisco CatOS Software Version 7.4(1)

Compatibility:
Cisco Catalyst 4500 Series
Cisco Catalyst 4500 Series

Certifications & Standards: Safety:
•UL 60950
•CAN/CSA-C22.2 No. 60950
•EN 60950
•IEC 60950
•TS 001
•AS/NZS 3260

Electromagnetic Compatibility (EMC):
•FCC Part 15 (CFR 47) Class A
•ICES-003 Class A
•EN55022 Class A
•CISPR22 Class A
•AS/NZS 3548 Class A
•VCCI Class A
•EN 55022
•EN 55024
•EN 61000-6-1
•EN 50082-1
•EN 61000-3-2
•EN 61000-3-3
•ETS 300 386

Industry EMC, Safety, and Environmental Standards:
•GR-63-Core Network Equipment Building Standards (NEBS) Level 3
•GR-1089-Core Level 3
•ETS 300 019 Storage Class 1.1
•ETS 300 019 Transportation Class 2.3 (pending)
•ETS 300 019 Stationary Use Class 3.1
•ETS 300 386
Cisco PWR-C45-1300ACV Original Manufacturer Warranty
