CISCO857W-G-A-K9

Manufacturer Part#: Cisco CISCO857W-G-A-K9

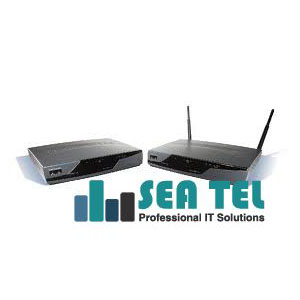

CISCO857W-G-A-K9 Wireless Router

CISCO857W-G-A-K9 Wireless Security Router - 4 x 10/100Base-TX LAN, 1 x ADSL WAN

The 857W ADSL Integrated Services Wireless Router supports broadband cable and Asymmetric DSL (ADSL) over analog telephone lines connections in small offices. It provides the performance needed to run concurrent services, including firewall and encryption for VPNs and 802.11b/g for wireless networking. The Cisco Router and Security Device Manager (SDM) Web-based configuration tool simplifies setup and deployment, and centralized management capabilities give network managers visibility and control of router configurations at the remote site.

Cisco CISCO857W-G-A-K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 850
Product Model: 857
Product Name: 857 ADSL SOHO Security Router
Product Type: Wireless Security Router

Cisco CISCO857W-G-A-K9 Wireless Specifications:
Wireless Technology: Wi-Fi IEEE 802.11g
Antenna: 1 x 2.2dBi Dipole Antenna Integrated with RP-TNC Connector
Antenna Range: 320 ft@ 1Mbps
Frequency Band/Bandwidth: 2.41 GHz to 2.48 GHz IEEE 802.11g ISM Band
Channels: 11 USA
Transmission Speed: 54Mbps

Cisco CISCO857W-G-A-K9 Interfaces/Ports:
Interfaces/Ports: 4 x RJ-45 10/100Base-TX Auto-sensing/Auto MDI/MDI-X LAN
Interfaces/Ports: 1 x RJ-11 ADSL WAN
Interfaces/Ports: 1 x RJ-45 Console Management

Cisco CISCO857W-G-A-K9 Media & Performance:
Connectivity Media: 10/100Base-TX Twisted Pair
Data Transfer Rate: 10Mbps Ethernet
Data Transfer Rate: 100Mbps Fast Ethernet
Data Transfer Rate: 8Mbps ADSL Downstream

Cisco CISCO857W-G-A-K9 Management & Protocols:
Cisco SDM
Cisco Configuration Express
Cisco CNS 2100 Intelligence Engine support
Cisco Service Assurance Agent (SAA)
Telnet
Simple Network Management Protocol (SNMP)
CLI
HTTP
Interim Local Management Interface (ILMI)
QoS
NAT
PAT
DHCP
RIP v1 and v2
Cisco SDM
Cisco Configuration Express
Cisco CNS 2100 Intelligence Engine support
Cisco Service Assurance Agent (SAA)
Telnet
Simple Network Management Protocol (SNMP)
CLI

Cisco CISCO857W-G-A-K9 Power Description:
Input Voltage: 100 V AC to 240 V AC

Cisco CISCO857W-G-A-K9 Physical Characteristics:
Form Factor: Wall-mountable
Dimensions: 2 x 10.25 x 9.13 - Dimensions with antenna connectors
Dimensions: 2 x 10.25 x 8.5 - Dimensions without antenna connectors
Weight: 2.1 lb - Antenna not included
