AIR-RM22A-N-K9

Manufacturer Part#: Cisco AIR-RM22A-N-K9

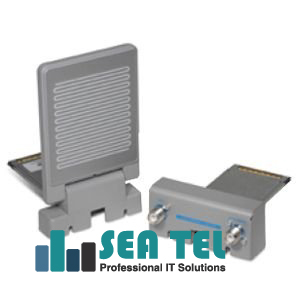

AIR-RM22A-N-K9 Cisco Wireless Module

AIR-RM22A-N-K9 802.11a Cardbus Radio Module w/RP-TNC, North America cfg

Cisco Aironet IEEE 802.11a 1200 Series access point provide an easy, cost-effective means to increase the capacity of your wireless network with a simple radio upgrade. An Allen wrench, supplied with the upgrade kit, is all you need to access the CardBus slot to upgrade a Cisco Aironet 1200 Series access point. Simply remove the existing 802.11a radio or remove the slot cover, and insert the new 802.11a module and upgrade the access point's IOS image. The access point does not need to be removed from the installed position and the installer does not need to be grounded while performing the upgrade.

Cisco AIR-RM22A-N-K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Aironet
Product Name: Aironet Cardbus Radio Module
Product Type: Wireless Module

Cisco AIR-RM22A-N-K9 Wireless Specifications:
Wireless Technology: Wi-Fi - IEEE 802.11a
Antenna: Dual RP-TNC Connector
Antenna Range: 170 ft@ 54Mbps Outdoors
Antenna Range: 90 ft@ 54Mbps Indoors
Antenna Range: 500 ft@ 6Mbps Indoors
Antenna Range: 950 ft@ 6Mbps Outdoors
Frequency Band/Bandwidth: 5.15 GHz to 5.35 GHz IEEE 802.11a North America
Frequency Band/Bandwidth: 5.72 GHz to 5.82 GHz IEEE 802.11a North America
Transmission Speed: 54Mbps
Transmission Speed Details: 54Mbps Auto-fallback IEEE 802.11a
Transmission Speed Details: 6Mbps IEEE 802.11a
Transmit Power: 17 dBm Maximum
Transmit Power: -1 dBm Minimum
Wireless Security:
802.1X and Temporal Key Integrity Protocol (TKIP)
Wi-Fi Protected Access (WPA) and WPA2
AES
802.1X and Temporal Key Integrity Protocol (TKIP)
Wi-Fi Protected Access (WPA) and WPA2
AES

AIR-RM22A-N-K9 Modulation:
Orthogonal Frequency Divisional Multiplexing (OFDM)
Binary Phase Shift Keying (BPSK) @ 6 and 9 Mbps
Quadrature Phase Shift Keying (QPSK) @ 12 and 18 Mbps
16-Quadrature Amplitude Modulation (QAM) @ 24 and 36 Mbps
64-QAM @ 48 and 54 Mbps
Orthogonal Frequency Divisional Multiplexing (OFDM)
Binary Phase Shift Keying (BPSK) @ 6 and 9 Mbps
Quadrature Phase Shift Keying (QPSK) @ 12 and 18 Mbps
16-Quadrature Amplitude Modulation (QAM) @ 24 and 36 Mbps
64-QAM @ 48 and 54 Mbps

Cisco AIR-RM22A-N-K9 Physical Characteristics:
Dimensions: 5.7 Height x 3.4' Width x 4.2 Depth - Antenna down
Dimensions: 1.6 Height x 3.4 Width x 4.7 Depth - Antenna up
Weight: 0.35 lb

Cisco AIR-RM22A-N-K9 Miscellaneous:
Additional Information:
Spare product
Software: Cisco IOS Software Release 12.3(4)JA or later
Radio Module Form Factor: CardBus (32-bit)
Spare product
Software: Cisco IOS Software Release 12.3(4)JA or later
Radio Module Form Factor: CardBus (32-bit)

AIR-RM22A-N-K9 Compatibility:
Cisco 1200 Series Access Point

AIR-RM22A-N-K9 Certifications & Standards:
Wi-Fi
IEEE 802.11a
IEEE 802.1x
FCC Bulletin CET-65C
RSS-102

AIR-RM22A-N-K9 Safety:
UL 60950
CAN/CSA C22.2 No. 60950
IEC 60950

AIR-RM22A-N-K9 Radio Approvals:
FCC Part 15.401-15.407
RSS-210 (Canada)
EN 301.893 (Europe)
ARIB STD-T71 (Japan)
AS 4268.2 (Australia)
AS/NZS 3548 (Australia and New Zealand)

AIR-RM22A-N-K9 Wi-Fi:
IEEE 802.11a
IEEE 802.1x
FCC Bulletin CET-65C
RSS-102
Safety:

AIR-RM22A-N-K9 UL 60950:
CAN/CSA C22.2 No. 60950
IEC 60950

AIR-RM22A-N-K9 Radio Approvals:
FCC Part 15.401-15.407
RSS-210 (Canada)
EN 301.893 (Europe)
ARIB STD-T71 (Japan)
AS 4268.2 (Australia)
AS/NZS 3548 (Australia and New Zealand)
