AIR-RM22A-C-K9

Manufacturer Part#: Cisco  AIR-RM22A-C-K9

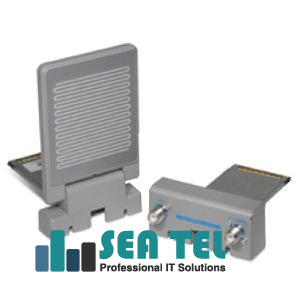

AIR-RM22A-C-K9 Cisco Wireless Module

AIR-RM22A-C-K9 802.11a Cardbus Radio Module w/RP-TNC, China cfg

Cisco Aironet AIR-RM22A IEEE 802.11a CardBus Radio Module provide customers with an easy and cost-effective migration path to the 802.11a standard for high-speed and high-channel-capacity wireless networking. Cisco Aironet AIR-RM22A IEEE 802.11a CardBus Radio Module provide an easy, cost-effective means to increase the capacity of your wireless network with a simple radio upgrade.

Cisco AIR-RM22A-C-K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Aironet
Product Model: AIR-RM22A
Product Name: Aironet AIR-RM22A IEEE 802.11a CardBus Radio Module
Product Type: Wireless Module

Cisco AIR-RM22A-C-K9 Wireless Specifications:
Wireless Technology: Wi-Fi - IEEE 802.11a
Antenna: Dual RP-TNC Connector
Antenna Range: 170 ft@ 54Mbps Outdoors IEEE 802.11a
Antenna Range: 950 ft@ 6Mbps Outdoors IEEE 802.11a
Antenna Range: 90 ft@ 54Mbps Indoors IEEE 802.11a
Antenna Range: 500 ft@ 6Mbps Indoors IEEE 802.11a
Frequency Band/Bandwidth: 5.15 GHz to 5.35 GHz IEEE 802.11a FCC
Frequency Band/Bandwidth: 5.72 GHz to 5.82 GHz IEEE 802.11a FCC
Frequency Band/Bandwidth: 5.72 GHz to 5.82 GHz IEEE 802.11a China
Transmission Speed: 54Mbps
Transmission Speed Details: 54Mbps Auto-fallback IEEE 802.11a
Transmission Speed Details: 6Mbps IEEE 802.11a
Transmit Power: -1 17 dBm IEEE 802.11a

AIR-RM22A-C-K9 Wireless Security:
Temporal Key Integrity Protocol (TKIP)
IEEE 802.1x
Wi-Fi Protected Access (WPA)
WPA2
AES
Temporal Key Integrity Protocol (TKIP)
IEEE 802.1x
Wi-Fi Protected Access (WPA)
WPA2
AES

AIR-RM22A-C-K9 Modulation:
Orthogonal Frequency Divisional Multiplexing (OFDM)
Binary Phase Shift Keying (BPSK) @ 6 and 9 Mbps
Quadrature Phase Shift Keying (QPSK) @ 12 and 18 Mbps
16-Quadrature Amplitude Modulation (QAM) @ 24 and 36 Mbps
64-QAM @ 48 and 54 Mbps
Orthogonal Frequency Divisional Multiplexing (OFDM)
Binary Phase Shift Keying (BPSK) @ 6 and 9 Mbps
Quadrature Phase Shift Keying (QPSK) @ 12 and 18 Mbps
16-Quadrature Amplitude Modulation (QAM) @ 24 and 36 Mbps
64-QAM @ 48 and 54 Mbps

Cisco AIR-RM22A-C-K9 Physical Characteristics:
Dimensions: 3.4 Thickness x 4.2 Width x 5.7 Depth - Antenna down
Dimensions: 1.6 Thickness x 3.4 Width x 4.7 Depth - Antenna up
Weight: 1.88 lb
