WS-C4510R

Manufacturer Part#: Cisco WS-C4510R

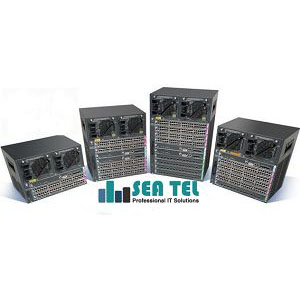

WS-C4510R Cisco Catalyst 4500 Series switch
WS-C4510R - Modular expansion base - 14 U - rack-mountable

The Cisco Catalyst 4510R offers nonblocking Layers 2 through 4 switching with integrated resiliency, further enhancing control of converged networks. Converged voice, video, and data networks with high availability enable business resiliency for enterprise and metropolitan (metro) Ethernet customers deploying Internet-based business applications.

An important component of Cisco AVVID (Architecture for Voice, Video and Integrated Data), the Cisco Catalyst 4510R extends control to the network edge with intelligent network services, including sophisticated quality of service (QoS), predictable performance, advanced security, comprehensive management, and integrated resiliency. Offering compatibility with Cisco Catalyst 4000 Series line cards and Supervisor Engines, the Cisco Catalyst 4510R provides an extended window of deployment for the Cisco Catalyst 4000 Series in converged networks. This reduces the cost of ownership by minimizing recurring operational expenses, improving return on investment (ROI).

Cisco WS-C4510R Management & Protocols:
Management:
•Support provided by Cisco Works Resource Manager Essentials (a component of LAN Management Solution [LMS]):
Builds and maintains an up-to-date hardware and software inventory
Maintains an active archive and simplifies deployment of configuration changes to multiple devices
Simplifies and accelerates software image analysis and automates deployment
Records and displays comprehensive reports of software, hardware, and configuration changes
Highlights critical devices and their ability to respond
Isolates network error conditions and suggests probable causes

•Support provided by Cisco Works Resource Manager Essentials (a component of LMS):
Network topology discovery and display services
VLAN provisioning and logical display representation
Traffic monitoring and performance assessment
End station tracking with search utilities
CiscoView graphical device management
Network topology integrity checking
Simple Network Management Protocol (SNMP) Version 1
SNMP Version 2c
Cisco Workgroup Management Information Base (MIB)
Ethernet MIB
Ethernet Repeater MIB
SNMP MIB II
Remote Monitoring (RMON)
RMON II
Interface table
Bridge MIB
Switched Port Analyzer (SPAN)
Enhanced Switched Port Analyzer (ESPAN)
Port snooping and connection steering
Telnet, Trivial File Transfer Protocol (TFTP), and Bootstrap Protocol (BOOTP) for management access

WS-C4510R Protocols: Not Applicable
Security Features:
•Standard Cisco IOS Software security capabilities: Passwords and Terminal Access Controller Access Control System (TACACS+)
•VLAN Support

Cisco WS-C4510R Power Description:
Input Current: Not Applicable
Frequency: Not Applicable
Power Consumption: Not Applicable
Power Source: Power Supply
Redundant Power Supply: Yes

Cisco WS-C4510R Environmental Conditions:
Temperature: -40 degrees F (-40.0 degrees C) to 167 degrees F (75.0 degrees C) Storage
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 10% to 90% Non-condensing Relative Humidity
Altitude: -196.84 ft to 6561.66 ft Operating

Cisco WS-C4510R Physical Characteristics:
Dimensions: 24.35 Height x 17.31 Width x 12.5 Depth
Shipping Dimensions: 19.85 Height x 23 Width x 32.6 Depth
Weight: 51.5lb
Shipping Weight: 75 lb

Cisco WS-C4510R Miscellaneous:
Additional Information:
Number of Power Supply Bays: 2
Number of Power Supply Bays: 2

WS-C4510R System Requirements:
The 1400W AC and 2800W AC power supplies are required to support a fully loaded Catalyst 4510R. The 1000W AC and 1300W AC power supplies can be deployed in the 4510R; however, power management is required
The 1400W AC and 2800W AC power supplies are required to support a fully loaded Catalyst 4510R. The 1000W AC and 1300W AC power supplies can be deployed in the 4510R; however, power management is required

Certifications & Standards:
•Ethernet:
IEEE 802.3: 10BASE-T
Fast Ethernet:
IEEE 802.3u: 100BASE-TX, 100BASE-FX
Gigabit Ethernet:
IEEE 802.3z
IEEE 802.3x
IEEE 802.3ab
1000BASE-X (GBIC):
1000BASE-SX
1000BASE-LX/LH
1000BASE-ZX
Virtual LAN (VLAN) trunking/tagging:
IEEE 802.1Q
IEEE 802.3ad
Spanning-Tree Protocol:
IEEE 802.1D
IEEE 802.1w
IEEE 802.1s
Security:
IEEE 802.1x
Power over Ethernet (PCE):
IEEE 802.3af
RFCs:
RFCs 1155-1157
RFC 1643
RFC 1516
RFC 1213
RFC 1757
RFC 2021
RFC 1573
RFC 1493
Regulatory compliance:
CE marking
Safety:
UL 60950
CAN/CSA-C22.2 No. 60950
EN 60950
IEC 60950
TS 001
AS/NZS 3260
EMC:
FCC Part 15 (CFR 47) Class A
ICES-003 Class A
EN55022 Class A
CISPR22 Class A
AS/NZS 3548 Class A
VCCI Class A
EN 55022
EN 55024
EN 61000-6-1
EN 50082-1
EN 61000-3-2
EN 61000-3-3
ETS 300 386
Industry EMC, safety, and environmental standards:
GR-63-Core Network Equipment Building Standards (NEBS) Level 3
GR-1089-Core Level 3
ETS 300 019 Storage Class 1.1
ETS 300 019 Transportation Class 2.3 (pending)
ETS 300 019 Stationary Use Class 3.1
ETS 300 386
Telecom (E1):
CTR 12/13
CTR 4
ACA TS016
Telecom (T1):
FCC Part 68
Canada CS-03
JATE Green Book

Cisco WS-C4510R General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Catalyst
Product Series: 4500
Product Name: Catalyst 4510R Switch Chassis
Product Type: Switch Chassis

Cisco WS-C4510R Interfaces/Ports:
Interfaces/Ports: LAN

Cisco WS-C4510R I/O Expansions:
Number of Expansion Slots: 10
Expansion Slots: (10 Total) Expansion Slot
Modules: Not Included

Cisco WS-C4510R Network & Communication:
Flow Control: IEEE 802.3x (Full-duplex)
Layer Support: 2 to 4
