WS-C3750X-24T-S

Manufacturer Part#:  Cisco WS-C3750X-24T-S

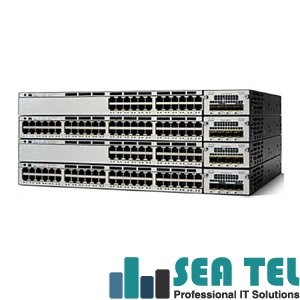

WS-C3750X-24T-S Rackmount Switch

WS-C3750X-24T-S - The Cisco® Catalyst® 3750-X and 3560-X Series Switches are an enterprise-class lines of stackable and standalone switches, respectively. These switches provide high availability, scalability, security, energy efficiency, and ease of operation with innovative features such as Cisco StackPower, IEEE 802.3at Power over Ethernet Plus (PoE+) configurations, optional network modules, redundant power supplies, and Media Access Control Security (MACsec) features. The Cisco Catalyst 3750-X Series with StackWise® Plus technology provides scalability, ease of management and investment protection for the evolving business needs. The Cisco Catalyst 3750-X and 3560-X enhance productivity by enabling applications such as IP telephony, wireless, and video for borderless network experience.

Cisco Catalyst WS-C3750X-24T-S Ethernet Switch 24x 10/100/1000 Ethernet Ports and Optional Modular 4x 1G, 2x 10G SFP Uplinks, 1U, IP Based image, 120Vac

WS-C3750X-24T-S Features:
24 and 48 10/100/1000 PoE+ and non-PoE models
Optional four Gigabit Ethernet (GbE) SFP or two 10GbE SFP+ uplink network modules
Industry first PoE+ with 30W power on all ports in 1 rack unit (RU) form factor
Dual redundant, modular power supplies and fans
Media Access Control Security (MACsec) hardware-based encryption
IPv4 and IPv6 routing, Multicast routing, advanced quality of service (QoS), and security features in hardware
Enhanced limited lifetime warranty (LLW) with next business day (NBD) advance hardware replacement and 90 day access to Cisco Technical Assistance Center (TAC) support
Enhanced Cisco EnergyWise for operational cost optimization by measuring actual power consumption of the PoE devices, reporting, and reducing energy consumption across the network
USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port.
Cisco StackPower™ technology: An innovative feature and industry first for sharing power among stack
members
Cisco StackWise Plus technology for ease of use and resiliency with 64 Gbps of throughput
Investment protection with backward compatibility with all other models of Cisco Catalyst 3750 Series Switches

WS-C3750X-24T-S General:
•Manufacturer: Cisco
•Device Type: Switch - 24 ports - Managed - stackable
•Enclosure Type: Rack-mountable - 1U
•Ports: 24 x 10/100/1000
•Performance: Switching fabric bandwidth : 160 Gbps

WS-C3750X-24T-S Dimensions
1.75" Height x 17.50" Width x 18" Depth
Expansion Slots (2 Total) Network Module

Input Voltage 110 V AC
220 V AC

WS-C3750X-24T-S Interfaces/Ports:
24 x RJ-45 10/100/1000Base-T PoE LAN
1 x Type A USB

1 x Type B USB Management
1 x RJ-45 Network Management

WS-C3750X-24T-S Form Factor
Rack-mountable

Product Model WS-C3750X-24T-S:
Number of Ports 24
Product Line Catalyst
Product Series 3750-X
Input Voltage Range 100 V AC to 240 V AC
Flash Memory 128 MB
Power Source Power Supply
Layer Support 2 to 3

Standard Memory 256 MB
Operating System Cisco IOS Software
Management •Command-line interface (CLI)
•DHCP
•VLAN
•QoS
•SNMP v1,2c,3
•RMON

WS-C3750X-24T-S Memory Technology
DRAM
Network Technology 10/100/1000Base-T
Standard Warranty Lifetime Limited

Contact Sea Tel International Co., Limited for more information.
