NM-CIDS-K9

Manufacturer Part#: Cisco NM-CIDS-K9

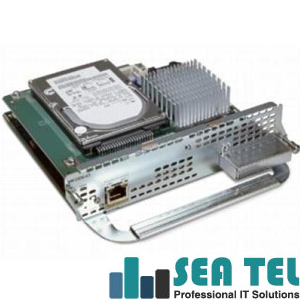

NM-CIDS-K9 Cisco Module

NM-CIDS-K9 - 1 x 10/100Base-TX - 1 x CompactFlash Card Slot - Intrusion Detection System Module

In Stock & Ready to Ship

Cisco IDS Network Module for the Cisco 2600, 3600, and 3700 series routers is part of the Cisco IDS Family sensor portfolio and the Cisco Intrusion Protection System. These IDS sensors work in concert with the other IDS components, including Cisco IDS Management Console, CiscoWorks VPN/Security Management Solution, and Cisco IDS Device Manager, to efficiently protect your data and information infrastructure. With the increased complexity of security threats, achieving efficient network intrusion security solutions is critical to maintaining a high level of protection. Vigilant protection helps ensure business continuity and minimizes the effect of costly intrusions.

Cisco NM-CIDS-K9 General Information
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Name: Intrusion Detection System Module
Product Type: Intrusion Detection System Module

Cisco NM-CIDS-K9 Interfaces/Ports
Interfaces/Ports: 1 x 10/100Base-TX
Interfaces/Ports Details: 1 x RJ-45 External Port 10/100Base-TX Management

Cisco NM-CIDS-K9 Media & Performance
Data Transfer Rate: 100Mbps Fast Ethernet
Data Transfer Rate: 10Mbps Ethernet

Cisco NM-CIDS-K9 I/O Expansions
 Expansion Slots: 1 x CompactFlash Card Slot

Cisco NM-CIDS-K9 Management & Protocols
Management:
Secure Outbound Management
Secure Outbound Management
Protocols: DNS
Protocols: POP
Protocols: SCP
Protocols: IP
Protocols: HTTPS
Protocols: NTP
Protocols: ICMP

Cisco NM-CIDS-K9 Management & Protocols
Protocols: FTP
Protocols: IMAP
Protocols: RPC
Protocols: SMTP
Security Features: IPSec
Security Features: SSH

Cisco NM-CIDS-K9 Processor & Chipset
Processor: 1 x Intel Mobile Pentium III 500MHz

Cisco NM-CIDS-K9 Memory
Memory: 256MB Flash Memory Installed
Memory: 512MB SDRAM Upgradeable
Memory: 16MB Flash Memory Installed

Cisco NM-CIDS-K9 Storage
Storage: 20GB IDE Internal Hard Disk

Cisco NM-CIDS-K9 Controls/Indicators
 Status Indicators:
Active
Link OK
Active
Link OK

Cisco NM-CIDS-K9 Environmental Conditions
Temperature: 0 degrees C (32.0 degrees F) to 40 degrees C (104.0 degrees F) Operating
Temperature: -40 degrees C (-40.0 degrees F) to 85 degrees C (185.0 degrees F) Non-operating
Humidity: 5% to 95% Non-condensing Operating
Altitude: 0 ft to 10000 ft Operating

Cisco NM-CIDS-K9 Physical Characteristics
Dimensions: 1.55 Height x 7.1 Width x 7.2 Depth
Shipping Dimensions: 3 Height x 10 Width x 16 Depth
Weight: 1.5 lb Maximum
Shipping Weight: 2 lb

Cisco NM-CIDS-K9 System Requirements:
The Cisco IDS Network Module works with any Cisco IOS firmware or IDS feature license that is in Cisco IOS Software Release 12.2(15)ZJ or later
The 10-45 Mbps performance for the Cisco IDS Network Module is based on the following conditions:
Five hundred new TCP connections per second
Five hundred HTTP transactions per second
Average packet size of 445 bytes
Running Cisco IDS 4.1 Sensor Software
The Cisco IDS Network Module works with any Cisco IOS firmware or IDS feature license that is in Cisco IOS Software Release 12.2(15)ZJ or later
The 10-45 Mbps performance for the Cisco IDS Network Module is based on the following conditions:
Five hundred new TCP connections per second
Five hundred HTTP transactions per second
Average packet size of 445 bytes
Running Cisco IDS 4.1 Sensor Software

NM-CIDS-K9 Compatibility:
Cisco 2600XM Series Router
Cisco 2691 Router
Cisco 3660 Router
Cisco 3725 Router
Cisco 3745 Router
Cisco 2600XM Series Router
Cisco 2691 Router
Cisco 3660 Router
Cisco 3725 Router
Cisco 3745 Router

Certifications & Standards:
Safety:
 UL 1950
CSA-C22.2 No. 950
EN 60950
IEC 60950
EMC:
FCC Part 15 Class A
EN55022 Class B
AS/NZS 3548 Class A
CISPR22 Class B
VCCI Class B
EN55024
EN61000-3-2
EN61000-3-3
IEEE:
IEEE 802.1Q
