Product Description
Manufacturer Part#: Cisco NM-16ESW

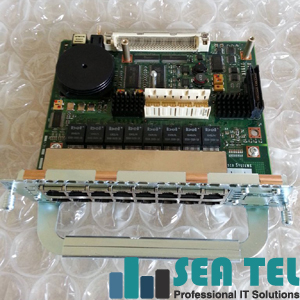

NM-16ESW 16-Port 100Mbps Ethernet Switch
In stock and ready to ship
The NM-16ESW Cisco 16- and 36-port 10/100 EtherSwitch modules for Cisco 2600, 3600, and 3700 series routers offer branch office customers the option to integrate switching and routing in one platform. Combining robust Layer 3 flexible WAN routing with low-density line-rate Layer 2 switching, the EtherSwitch modules provide straightforward configuration, easy deployment and integrated management in a single platform.
The NM-16ESW EtherSwitch options include a 16-port network module (NM) and a 36-port high density service module (HDSM) version. The 36-port HDSM utilizes the extra capacity from the wider interface form factor available only on the Cisco 3700 and Cisco 3660 routers to increase the port densities. The 16-port EtherSwitch NM is available for the Cisco 2600, 3600 and 3700 series routers.
Device Type: Switch - 16 ports - Managed
Enclosure Type: Plug-in module
Ports: 16 x 10/100
NM-16ESW Remote Management: Protocol SNMP
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p
Dimensions (WxDxH) 18 cm x 18.3 cm x 3.9 cm
Weight 0.9 kg
System Requirements Cisco IOS
NM-16ESW Designed For Cisco 2611XM, 2621XM, 2651XM, 2691, 2811, 2821, 2851, 2911, 2921, 2951, 3745, 3825, 3845, 3845 V3PN, 3925, 3925E, 3945
Our Cisco NM Series Network Module stock
NM-16ESW 16-Port 100Mbps Ethernet Switch
In stock and ready to ship
The NM-16ESW Cisco 16- and 36-port 10/100 EtherSwitch modules for Cisco 2600, 3600, and 3700 series routers offer branch office customers the option to integrate switching and routing in one platform. Combining robust Layer 3 flexible WAN routing with low-density line-rate Layer 2 switching, the EtherSwitch modules provide straightforward configuration, easy deployment and integrated management in a single platform.
The NM-16ESW EtherSwitch options include a 16-port network module (NM) and a 36-port high density service module (HDSM) version. The 36-port HDSM utilizes the extra capacity from the wider interface form factor available only on the Cisco 3700 and Cisco 3660 routers to increase the port densities. The 16-port EtherSwitch NM is available for the Cisco 2600, 3600 and 3700 series routers.
Device Type: Switch - 16 ports - Managed
Enclosure Type: Plug-in module
Ports: 16 x 10/100
NM-16ESW Remote Management: Protocol SNMP
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p
Dimensions (WxDxH) 18 cm x 18.3 cm x 3.9 cm
Weight 0.9 kg
System Requirements Cisco IOS
NM-16ESW Designed For Cisco 2611XM, 2621XM, 2651XM, 2691, 2811, 2821, 2851, 2911, 2921, 2951, 3745, 3825, 3845, 3845 V3PN, 3925, 3925E, 3945
Our Cisco NM Series Network Module stock
|
