CISCO857W-G-E-K9

Manufacturer Part#: Cisco CISCO857W-G-E-K9

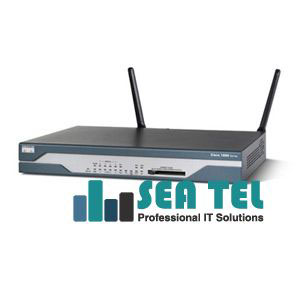

CISCO857W-G-E-K9 Wireless Router

CISCO857W-G-E-K9 Wireless Broadband Router - 4 x 10/100Base-TX LAN, 1 x ADSL WAN

The 857 ADSL Wireless Router of secure broadband and wireless routers is part of the Cisco Integrated Services Router portfolio. Designed for small offices, the router provides secure WAN connectivity with optional integrated 802.11b/g WLANs in a single device. Easy setup allows the 857 ADSL Wireless Router to be deployed at small remote offices and small businesses, and remote management features enable IT managers and service providers to provide better support at remote sites.

Cisco CISCO857W-G-E-K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 850
Product Model: 857
Product Name: 857 ADSL Wireless Router
Product Type: Wireless Broadband Router

Cisco CISCO857W-G-E-K9 Wireless Specifications:
Wireless Technology: Wi-Fi IEEE 802.11b/g
Antenna: 1 x 2.2dBi Dipole Antenna Integrated with RP-TNC Connector
Antenna Range: 320 ft@ 1Mbps
Frequency Band/Bandwidth: 2.41 GHz to 2.48 GHz IEEE 802.11b/g ISM Band
Channels: 11 USA
Transmission Speed: 54Mbps

Cisco CISCO857W-G-E-K9 Interfaces/Ports:
Interfaces/Ports: 4 x RJ-45 10/100Base-TX Auto-sensing/Auto MDI/MDI-X LAN
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x ADSL WAN

Cisco CISCO857W-G-E-K9 Media & Performance:
Connectivity Media: 10/100Base-TX Twisted Pair
Data Transfer Rate: 100Mbps Fast Ethernet
Data Transfer Rate: 10Mbps Ethernet
Data Transfer Rate: 8Mbps ADSL Downstream

Cisco CISCO857W-G-E-K9 Management & Protocols:
Management:
Cisco SDM
Cisco Configuration Express
Cisco CNS 2100 Intelligence Engine support
Cisco Service Assurance Agent (SAA)
Telnet
Simple Network Management Protocol (SNMP)
CLI
HTTP
Interim Local Management Interface (ILMI)
QoS
NAT
PAT
DHCP
RIP v1 and v2
Cisco SDM
Cisco Configuration Express
Cisco CNS 2100 Intelligence Engine support
Cisco Service Assurance Agent (SAA)
Telnet
Simple Network Management Protocol (SNMP)
CLI

Cisco CISCO857W-G-E-K9 Power Description:
Input Voltage: 100 V AC to 240 V AC

Cisco CISCO857W-G-E-K9 Physical Characteristics:
Form Factor: Wall-mountable
Dimensions: 2 Height x 10.25 Width x 9.13 Depth - Dimensions with antenna connectors
Dimensions: 2 x 10.25 x 8.5 - Dimensions without antenna connectors
Weight: 2.1 lb - Antenna not included
