Product Description

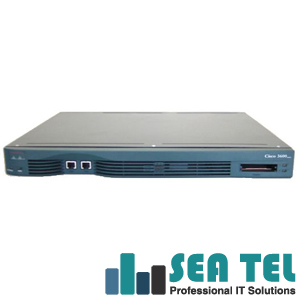

Manufacturer Part#: Cisco CISCO3661-AC
CISCO3661-AC 3600 Series Multiservice Platforms
CISCO3661-AC - 10/100 E Cisco 3660 6-Slot Modular Router-Ac With Ip Sw
Cisco CISCO3661-AC General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 3600
Product Name: 3661 Router
Product Type: Router
Cisco CISCO3661-AC Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Cisco CISCO3661-AC Media & Performance:
Connectivity Media: Cable Twisted Pair
Forwarding/Filtering Rate: 120Kpps
Cisco CISCO3661-AC I/O Expansions:
Number of Expansion Slots: 10
Expansion Slots: (2 Total) PC Card
Expansion Slots: (6 Total) Network Module
Expansion Slots: (2 Total) AIM
Cisco CISCO3661-AC Management & Protocols:
Management:
Support for CiscoWorks, CiscoWorks2000, and CiscoView
Enhanced setup feature
Auto install configures remote units automatically across aWAN connection
Support for the Cisco Discovery Protocol (CDP)
Support for CiscoWorks, CiscoWorks2000, and CiscoView
Enhanced setup feature
Auto install configures remote units automatically across aWAN connection
Support for the Cisco Discovery Protocol (CDP)
Protocols: TCP/IP
Protocols: RSVP
Cisco CISCO3661-AC Processor & Chipset:
Processor: 1 x QED RM5271 RISC 255MHz
Cisco CISCO3661-AC Memory:
Standard Memory: 32MB
Maximum Memory: 256MB
Memory Technology: SDRAM
Flash Memory: 16 MB
Cisco CISCO3661-AC Controls/Indicators:
Status Indicators:
Interface activity status
System status
Individual power-supply status
Interface activity status
System status
Individual power-supply status
Cisco CISCO3661-AC Software:
Operating System:
Cisco 3660 Series IOS IP
Cisco 3660 Series IOS IP
Cisco CISCO3661-AC Power Description:
Input Voltage: 110V AC
Input Voltage: 220V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 2A @ 200V AC
Input Current: 4A @ 100V AC
Frequency: 50 Hz to 60 Hz
Power Consumption: 250W Maximum
Power Source: Power Supply
Redundant Power Supply: Yes
Cisco CISCO3661-AC Environmental Conditions:
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Temperature: -13 degrees F (-25.0 degrees C) to 158 degrees F (70.0 degrees C) Storage
Humidity: 5% to 95% Non-condensing Relative Humidity
Cisco CISCO3661-AC Physical Characteristics:
Compatible Rack Unit: 5U
Form Factor: Rack-mountable
Form Factor: Desktop
Dimensions: 8.75 Height x 17.5 Width x 11.5 Depth
Shipping Dimensions: 17 Height x 18 Width x 22 Depth
Weight: 43 lb
Contact Sea Tel International Co., Limited for more information.
CISCO3661-AC 3600 Series Multiservice Platforms
CISCO3661-AC - 10/100 E Cisco 3660 6-Slot Modular Router-Ac With Ip Sw
Cisco CISCO3661-AC General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 3600
Product Name: 3661 Router
Product Type: Router
| Sea Tel International Co., Limited CISCO 3600 Series Router | |||
| CISCO3640-RPS | CISCO3662-DC-CO | 3620MBUNDLE-30DM | CISCO3620-RPS |
| CISCO3661-AC | CISCO3640-DC | 3620MBUNDLE-24DM | CISCO3661-DC |
| CISCO3620 | CISCO3640-CH | CPA3620 | CISCO3640A |
| CISCO3640A-DC | C3662-2FE/VPN/K9 | CISCO3620-CH | CISCO3662-AC |
| CISCO3662-DC | C3662-2FE/VPN/K8 | CISCO3640 | CISCO 3640 |
| CISCO3662-AC-CO | 3640MBUNDLE-8B-U | CISCO3640A-RPS | CISCO 3620 |
Cisco CISCO3661-AC Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Cisco CISCO3661-AC Media & Performance:
Connectivity Media: Cable Twisted Pair
Forwarding/Filtering Rate: 120Kpps
Cisco CISCO3661-AC I/O Expansions:
Number of Expansion Slots: 10
Expansion Slots: (2 Total) PC Card
Expansion Slots: (6 Total) Network Module
Expansion Slots: (2 Total) AIM
Cisco CISCO3661-AC Management & Protocols:
Management:
Support for CiscoWorks, CiscoWorks2000, and CiscoView
Enhanced setup feature
Auto install configures remote units automatically across aWAN connection
Support for the Cisco Discovery Protocol (CDP)
Support for CiscoWorks, CiscoWorks2000, and CiscoView
Enhanced setup feature
Auto install configures remote units automatically across aWAN connection
Support for the Cisco Discovery Protocol (CDP)
Protocols: TCP/IP
Protocols: RSVP
Cisco CISCO3661-AC Processor & Chipset:
Processor: 1 x QED RM5271 RISC 255MHz
Cisco CISCO3661-AC Memory:
Standard Memory: 32MB
Maximum Memory: 256MB
Memory Technology: SDRAM
Flash Memory: 16 MB
Cisco CISCO3661-AC Controls/Indicators:
Status Indicators:
Interface activity status
System status
Individual power-supply status
Interface activity status
System status
Individual power-supply status
Cisco CISCO3661-AC Software:
Operating System:
Cisco 3660 Series IOS IP
Cisco 3660 Series IOS IP
Cisco CISCO3661-AC Power Description:
Input Voltage: 110V AC
Input Voltage: 220V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 2A @ 200V AC
Input Current: 4A @ 100V AC
Frequency: 50 Hz to 60 Hz
Power Consumption: 250W Maximum
Power Source: Power Supply
Redundant Power Supply: Yes
Cisco CISCO3661-AC Environmental Conditions:
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Temperature: -13 degrees F (-25.0 degrees C) to 158 degrees F (70.0 degrees C) Storage
Humidity: 5% to 95% Non-condensing Relative Humidity
Cisco CISCO3661-AC Physical Characteristics:
Compatible Rack Unit: 5U
Form Factor: Rack-mountable
Form Factor: Desktop
Dimensions: 8.75 Height x 17.5 Width x 11.5 Depth
Shipping Dimensions: 17 Height x 18 Width x 22 Depth
Weight: 43 lb
Contact Sea Tel International Co., Limited for more information.
