CISCO2611XM-SHDSL

Manufacturer Part#: Cisco CISCO2611XM-SHDSL

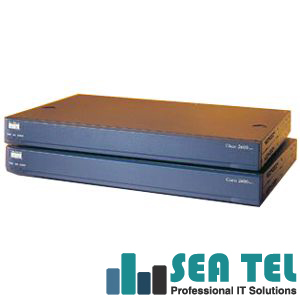

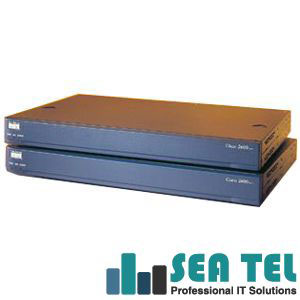

CISCO2611XM-SHDSL Cisco 2600 Series Multiservice Router Platform

CISCO2611XM-SHDSL - 2611Xm-Shdsl Bundle, Wic-1Shdsl, 2Fe, Ip+, 32Flash, 128Dram

Cisco 2611XM is an award-winning modular multiservice access router, providing flexible LAN and WAN configurations, multiple security options, voice and data integration, and a range of high-performance processors. The wide range of features and interfaces and the flexibility of adding more than 50 modules makes the Cisco 2611XM the ideal branch-office router for today's and tomorrow's customer requirements.

Cisco CISCO2611XM-SHDSL General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 2600
Product Name: 2611XM Modular Access Router
Product Type: Router

Cisco CISCO2611XM-SHDSL Interfaces/Ports:
Number of Ports: 3
Fast Ethernet Port: Yes
DSL Port: Yes
Interfaces/Ports: 1 x RJ-11 WAN
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 2 x RJ-45 10/100Base-TX 10/100Base-TX LAN

Cisco CISCO2611XM-SHDSL Media & Performance:
Connectivity Media: Twisted Pair
Forwarding/Filtering Rate: 20Kpps

Cisco CISCO2611XM-SHDSL I/O Expansions:
Number of Expansion Slots: 4
Expansion Slots: (2 Total /1 Free /1 Populated) WIC
Expansion Slots: (1 Total) AIM
Expansion Slots: (1 Total) Network Module
Modules: 1 x WIC-1SHDSL-V2 WAN Interface Card (WIC)

Cisco CISCO2611XM-SHDSL Management & Protocols:
Management:
Cisco Router and Security Device Manager (SDM)
Enhanced Setup Feature
Support for Cisco AutoInstall
VLAN Support
Cisco Router and Security Device Manager (SDM)
Enhanced Setup Feature
Support for Cisco AutoInstall
VLAN Support

Cisco CISCO2611XM-SHDSL Memory:
Standard Memory: 256MB
Maximum Memory: 256MB
Memory Technology: DRAM
Flash Memory: 32 MB

Cisco CISCO2611XM-SHDSL Software:
Operating System:
Cisco 2611XM IOS SP SERVICEs

Cisco CISCO2611XM-SHDSL Physical Characteristics:
Compatible Rack Unit: 1U
Form Factor: Wall-mountable
Form Factor: Desktop
Form Factor: Rack-mountable
Dimensions: 1.69 Height x 17.5 Width x 11.8 Depth
Weight: 8.85 lb
