CISCO1841-SEC/K9

Manufacturer Part#:  Cisco CISCO1841-SEC/K9

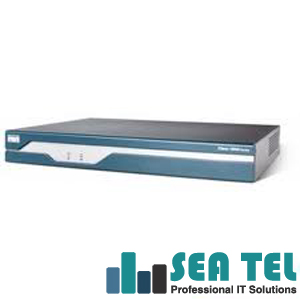

CISCO1841-SEC/K9 1800 Series Integrated Services Router

CISCO1841-SEC/K9 - Integrated Services Router - 1 x CompactFlash (CF) Card - 2 x 10/100Base-TX LAN, 1 x USB

Cisco 1841 router is designed for secure data connectivity and provides significant additional value compared to prior generations of Cisco 1700 Series routers by offering more than a fivefold performance increase, integrated hardware-based encryption enabled by an optional Cisco IOS Software security image, and a dramatic increase in interface card slot performance and density while maintaining support for more than 30 existing WAN interface cards (WICs) and multiflex trunk cards (voice/WICs [VWICs]-for data only on the Cisco 1841 router) of the Cisco 1700 Series.

The Cisco 1841 modular architecture has been specifically designed to meet requirements of small-to-medium-sized businesses and small enterprise branch offices as well as service provider-managed applications for concurrent services at wire-speed performance.

Cisco CISCO1841-SEC/K9 Power Description:
Input Voltage: 220V AC
Input Voltage: 110V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 1.5A
Frequency: 50 Hz or 60 Hz
Power Consumption: 50W Maximum
Power Source: Power Supply

Cisco CISCO1841-SEC/K9 Environmental Conditions:
Temperature: -4 degrees F (-20.0 degrees C) to 149 degrees F (65.0 degrees C) Non-operating
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 5% to 95% Non-condensing Non-operating
Humidity: 10% to 85% Non-condensing Operating
Thermal Dissipation: 153 BTU/h

Cisco CISCO1841-SEC/K9 Physical Characteristics:
Form Factor: Desktop
Form Factor: Wall-mountable
Dimensions: 1.73 Height x 13.5 Width x 10.8 Depth
Dimensions: 1.87 Height x 13.5 Width x 10.8 Depth
Weight: 6.2 lb
Weight: 6 lb

Cisco CISCO1841-SEC/K9 Original Manufacturer Warranty:
Standard Warranty: 1 Year Limited

Cisco CISCO1841-SEC/K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 1800
Product Name: 1841 Router with Security Bundle
Product Type: Integrated Services Router

Cisco CISCO1841-SEC/K9 Interfaces/Ports:
Number of Ports: 2
Fast Ethernet Port: Yes
Interfaces/Ports: 2 x RJ-45 10/100Base-TX LAN
Interfaces/Ports: 1 x USB
Interfaces/Ports: 1 x Console Management
Interfaces/Ports: 1 x Auxiliary Management

Cisco CISCO1841-SEC/K9 I/O Expansions:
Number of Expansion Slots: 3
Expansion Slots: (2 Total) Expansion Slot
Expansion Slots: (1 Total) AIM

Cisco CISCO1841-SEC/K9 Management & Protocols:
Management:
Cisco Router and Security Device Manager (SDM)
Command-Line Interface (CLI)
CiscoWorks
Cisco AutoInstall
Simple Network Management Protocol (SNMP)
Cisco Router and Security Device Manager (SDM)
Command-Line Interface (CLI)
CiscoWorks
Cisco AutoInstall
Simple Network Management Protocol (SNMP)

Protocols: IPSec
Protocols: SSH v2
Protocols: SNMP
Protocols: TCP/IP

Cisco CISCO1841-SEC/K9 Memory:
Standard Memory: 256MB
Maximum Memory: 384MB
Memory Technology: DRAM
Flash Memory: 64 MB

Cisco CISCO1841-SEC/K9 Software:
Operating System:
Cisco 1841 IOS ADVANCED SECURITY
Cisco 1841 IOS ADVANCED SECURITY
