CISCO1803W-AG-E/K9

Manufacturer Part#: Cisco CISCO1803W-AG-E/K9

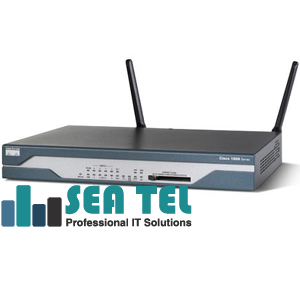

CISCO1803W-AG-E/K9 Wireless Router

CISCO1803W-AG-E/K9 1803 G.SHDSL Router provides intelligently embed data, security, and wireless technology into a single, resilient system for fast, secure, scalable delivery of mission-critical business applications. The 1803 G.SHDSL Router's architecture has been specifically designed to meet requirements of small to medium-sized businesses (SMBs), enterprise branch offices, and service provider-managed services applications for delivery of concurrent services at wire-speed performance.
The integrated wireless access point supports IEEE 802.11a/b/g simultaneously to provide high-speed wireless capability and flexibility to support 2.4 GHz and 5 GHz dual-band simultaneous operation, making it ideal choice for wireless hot-spot deployments and wireless office solutions.

Cisco CISCO1803W-AG-E/K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 1800
Product Model: 1803
Product Name: 1803 Integrated Services Router
Product Type: Wireless Router

Cisco CISCO1803W-AG-E/K9 Wireless Specifications:
Wireless Technology: Wi-Fi IEEE 802.11a/b/g
Antenna: 2.2dBi Diversity Antenna External
Antenna Range: 320 ft@ 1Mbps Indoors
Frequency Band/Bandwidth: 5 GHz IEEE 802.11a UNII Band FCC
Frequency Band/Bandwidth: 2.4 GHz IEEE 802.11b/g ISM Band FCC
Transmission Speed: 54Mbps

Cisco CISCO1803W-AG-E/K9 Interfaces/Ports:
Interfaces/Ports: 8 x RJ-45 10/100Base-TX LAN
Interfaces/Ports: 1 x ISDN BRI (S/T)
Interfaces/Ports: 1 x RJ-45 10/100Base-TX WAN
Interfaces/Ports: 1 x G.SHDSL
Interfaces/Ports: 1 x Auxiliary Management
Interfaces/Ports: 1 x Console Management

Cisco CISCO1803W-AG-E/K9 Media & Performance:
Connectivity Media: 10/100Base-TX Twisted Pair
Data Transfer Rate: 100Mbps Fast Ethernet
Data Transfer Rate: 10Mbps Ethernet
Data Transfer Rate: 115.2Kbps Console
Data Transfer Rate: 115.2Kbps Auxiliary

Cisco CISCO1803W-AG-E/K9 I/O Expansions:
Expansion Slots: (1 Total) CompactFlash (CF) Card

Cisco CISCO1803W-AG-E/K9 Management & Protocols:
CiscoWorks 2000
CiscoView
Router and Security Device Management
SNMP
QoS
GUI-based network management
CLI
CiscoWorks 2000
CiscoView
Router and Security Device Management
SNMP
QoS

Cisco CISCO1803W-AG-E/K9 Power Description:
Input Voltage: 100 V AC to 240 V AC

Cisco CISCO1803W-AG-E/K9 Physical Characteristics:
Form Factor: 19 Rack-mountable
Form Factor: Wall-mountable
Form Factor: 1U Desktop
Dimensions: 1.89 Height x 12.74 Width x 9.7 Depth - Height with rubber feet
Dimensions: 1.75 Height x 12.74 Width x 9.7' Depth - Height without rubber feet
