CISCO1803W-AG-A/K9

Manufacturer Part#: Cisco CISCO1803W-AG-A/K9

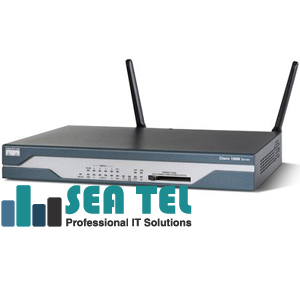

CISCO1803W-AG-A/K9 Wireless Router

CISCO1803W-AG-A/K9 Wireless Router - 8 x LAN, 1 x WAN, 1, 1 x WAN

The 1803 Wireless G.SHDSL Router provides intelligently embed data, security, and wireless technology into a single, resilient system for fast, secure, scalable delivery of mission-critical business applications. The 1803 G.SHDSL Router's architecture has been specifically designed to meet requirements of small to medium-sized businesses (SMBs), enterprise branch offices, and service provider-managed services applications for delivery of concurrent services at wire-speed performance.
The integrated wireless access point supports IEEE 802.11a/b/g simultaneously to provide high-speed wireless capability and flexibility to support 2.4 GHz and 5 GHz dual-band simultaneous operation, making it ideal choice for wireless hot-spot deployments and wireless office solutions.

Cisco CISCO1803W-AG-A/K9 Management & Protocols:
MAC authentication/filter encryption
RADIUS
Message integrity check (MIC)
SSIDs: 16
MBSSIDs: 8
IPSec Tunnels Supported: 50
IPSec VPN Performance: 40 Mbps 3DES @ 1400 byte packets
Cisco IOS Firewall Performance: 100 Mbps @ 1400 byte packets
Intrusion Prevention System (IPS)
URL Filtering

Cisco CISCO1803W-AG-A/K9 Power Description:
Input Voltage: 100 V AC to 240 V AC Power Supply
Power Supply: Internal

Cisco CISCO1803W-AG-A/K9 Physical Characteristics:
Form Factor: Desktop
Form Factor: Wall-mountable
Form Factor: 1U 19 Rack-mountable
Dimensions: 1.89 Height x 12.74 Width x 9.7 Depth
Dimensions: 1.75 Height x 12.74 Width x 9.7 Depth
Weight: 6.1 lb Maximum

Cisco CISCO1803W-AG-A/K9 Miscellaneous:
Cisco IOS Advanced IP Services
Recommended Number of Users: 50
PCE Support
VLAN Configured: 8
DRAM: Synchronous dual in-line memory module (DIMM) SDRAM (1 DIMM slot)

Cisco CISCO1803W-AG-A/K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 1800
Product Model: 1803
Product Name: 1803 G.SHDSL Router
Product Type: Wireless Router

Cisco CISCO1803W-AG-A/K9 Wireless Specifications:
Wireless Technology: IEEE 802.11a/b/g
Antenna: 2.2dBi Diversity Antenna Detachable with RP-TNC Connector
Antenna Range: 320 ft@ 1Mbps Indoors IEEE 802.11b
Frequency Band/Bandwidth: 2.4 GHz IEEE 802.11b/g ISM Band
Frequency Band/Bandwidth: 5 GHz IEEE 802.11a
Transmission Speed: 54Mbps

Cisco CISCO1803W-AG-A/K9 Interfaces/Ports:
Interfaces/Ports: 8 x RJ-45 LAN
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Interfaces/Ports: 1 x WAN
Interfaces/Ports: 1 x
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 WAN

Cisco CISCO1803W-AG-A/K9 Media & Performance:
Connectivity Media: 10/100Base-TX Twisted Pair
Data Transfer Rate: 10Mbps Ethernet
Data Transfer Rate: 100Mbps Fast Ethernet
Data Transfer Rate: 64Kbps ISDN BRI (S/T)
Data Transfer Rate: 115.2Kbps Console
Data Transfer Rate: 115.2Kbps Auxiliary

Cisco CISCO1803W-AG-A/K9 I/O Expansions:
Expansion Slots: (1 Total) CompactFlash (CF) Card

Cisco CISCO1803W-AG-A/K9 Management & Protocols:
Quality of Service (QoS)
GUI-based network management for wireless interface is provided
Supported by Cisco-Works 2000, Cisco-View and Router, and Security Device Management (SDM)
Quality of Service (QoS)
GUI-based network management for wireless interface is provided
Supported by Cisco-Works 2000, Cisco-View and Router, and Security Device Management (SDM)
