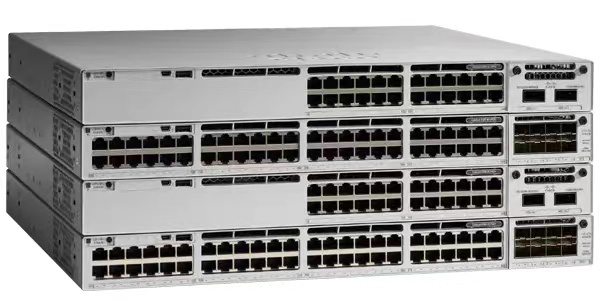

C9300-48T-A

C9300-48T-A Overview

The Cisco® Catalyst® 9300 Series Switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. C9300-48T-A is 48-port data only, Network Advantage Switch of 9300 series. Catalyst 9300 Series are the next generation of the industry’s most widely deployed switching platform. At 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.



Specifications of the Cisco Catalyst C9300-48T-A switch:
Performance:
Switching capacity: 336 Gbps
Forwarding rate: 250.6 Mpps

Ports:
48 x 10/100/1000 Ethernet ports
1 x management console port (RJ-45)
1 x USB Type-A port

Power:
AC power supply: 1100W

Physical specifications:
Dimensions (H x W x D): 1.73 x 17.5 x 16.1 inches
Weight: 15.5 lbs

Software features:
Layer 2 and Layer 3 switching
Cisco StackWise-480 technology for stacking up to 8 switches
Cisco StackPower technology for power stacking up to 4 switches
Support for Cisco DNA Center and Software-Defined Access (SD-Access)
Advanced security features, including Cisco TrustSec and MACsec
Advanced QoS features, including classification and policing
Multicast routing and PIM-DM support

Management and protocols:
Cisco IOS XE software
Cisco Prime Infrastructure
Simple Network Management Protocol (SNMP)
Remote Monitoring (RMON)
NetFlow-Lite

Note that the specifications listed above may be subject to change based on the software version, hardware revision, and other factors. For the most up-to-date information, please refer to the official datasheet.
