Product Description
C9300-24U-A
Catalyst 9300 24-port UPOE, Network Advantage
Cisco Systems C9300-24U-A Specifications
Catalyst 9300 24 Port Upoe Network Advantage

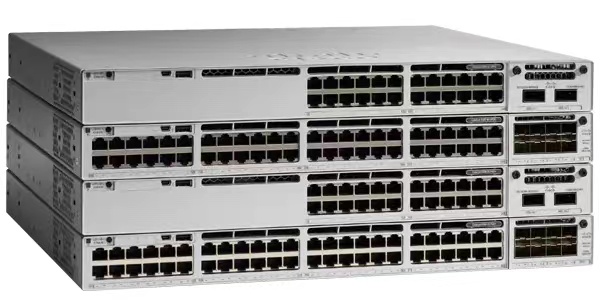

C9300-24U-A Overview
The Cisco® Catalyst® 9300 Series Switches C9300-24U-A are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry's most widely deployed switching platform. The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco's lead enterprise architecture. At 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.
The Catalyst 9300 Series is designed for Cisco StackWise® virtual technology, providing flexible deployment with support for nonstop forwarding with stateful switchover (NSF/SSO), for the most resilient architecture in a stackable sub-50-ms solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Cisco Universal Power Over Ethernet (Cisco UPOE®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, open Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.
C9300-24U-A Specification |
|
|
Part Number |
C9300-24U-A |
|
Product Description |
Catalyst 9300 24-port UPOE, Network Advantage |
|
Total 10/100/1000 or Multigigabit copper ports |
24 Cisco UPOE |
|
Default AC power supply |
1100W AC |
|
Available PoE power |
830W |
|
Cisco StackWise-480 |
Yes |
|
Cisco StackPower |
Yes |
|
Default power supply |
PWR-C1-1100WAC-P/2 |
|
Switching capacity |
208 Gbps on 24-port Gigabit Ethernet model |
|
Stacking bandwidth |
480 Gbps |
|
Total number of MAC addresses |
32,000 |
|
Total number of IPv4 routes (ARP plus learned routes) |
32,000 (24,000 direct routes and 8000 indirect routes) |
|
IPv4 routing entries |
32,000 |
|
IPv6 routing entries |
16,000 |
|
Multicast routing scale |
8000 |
|
QoS scale entries |
5120 |
|
ACL scale entries |
5120 |
|
Packet buffer per SKU |
16 MB buffer for 24- or 48-port Gigabit Ethernet models |
|
FNF entries |
64,000 flow on 24- and 48-port Gigabit Ethernet models |
|
DRAM |
8 GB |
|
Flash |
16 GB |
|
VLAN IDs |
4000 |
|
Total Switched Virtual Interfaces (SVIs) |
2000 |
|
Jumbo frames |
9198 bytes |
|
Total routed ports per 9300 Series stack |
208 |
|
Wireless bandwidth per switch |
Up to 48 Gbps on 24-port Gigabit Ethernet model |
|
Forwarding rate |
154.76 Mpps |
|
Dimensions (H x W x D) |
1.73 x 17.5 x 17.5 Inches |
|
Weight |
16.33 Pounds |
|
Mean time between failures (hours) |
299,000
|
| C9300-24P-A | Catalyst 9300 24-port PoE+, Network Advantage |
| C9300-24P-E | Catalyst 9300 24-port PoE+, Network Essentials |
| C9300-24T-A | Catalyst 9300 24-port data only, Network Advantage |
| C9300-24T-E | Catalyst 9300 24-port data only, Network Essentials |
| C9300-48P-A | Catalyst 9300 48-port PoE+, Network Advantage |
| C9300-48P-E | Catalyst 9300 48-port PoE+, Network Essentials |
| C9300-48T-A | Catalyst 9300 48-port data only, Network Advantage |
| C9300-48T-E | Catalyst 9300 48-port data only, Network Essentials |
| C9300-24H-A | Catalyst 9300 24-port UPoE+, Network Advatege |
| C9300-24H-E | Catalyst 9300 24-port UPoE+, Network Essentials |
| C9300-24S-A | Catalyst 9300 24 GE SFP Ports, modular uplink Switch |
| C9300-24S-E | Catalyst 9300 24 GE SFP Ports, modular uplink Switch |
| C9300-24U-A | Catalyst 9300 24-port UPOE, Network Advantage |
| C9300-24U-E | Catalyst 9300 24-port UPOE, Network Essentials |
| C9300-24UX-A | Catalyst 9300 24-port mGig and UPOE, Network Advantage |
| C9300-24UX-E | Catalyst 9300 24-port mGig and UPOE, Network Essentials |
| C9300-48H-A | Catalyst 9300 48-port UPoE+, Network Advantage |
| C9300-48H-E | Catalyst 9300 48-port UPoE+, Network Essentials |
| C9300-48S-A | Catalyst 9300 48 GE SFP Ports, modular uplink Switch |
| C9300-48S-E | Catalyst 9300 48 GE SFP Ports, modular uplink Switch |
| C9300-48U-A | Catalyst 9300 48-port UPOE, Network Advantage |
| C9300-48U-E | Catalyst 9300 48-port UPOE, Network Essentials |
| C9300-48UN-A | Catalyst 9300 48-port of 5Gbps Network Advantage |
| C9300-48UN-E | Catalyst 9300 48-port of 5Gbps Network Essentials |
| C9300-48UXM-A | Catalyst 9300 48-port(12 mGig, 36 2.5Gbps) Network Advantage |
| C9300-48UXM-E | Catalyst 9300 48-port(12 mGig,36 2.5Gbps) Network Essentials |
| C9300-24H-A | Catalyst 9300 24-port UPoE+, Network Advatege |
| C9300-24H-E | Catalyst 9300 24-port UPoE+, Network Essentials |
| C9300-24S-A | Catalyst 9300 24 GE SFP Ports, modular uplink Switch |
| C9300-24S-E | Catalyst 9300 24 GE SFP Ports, modular uplink Switch |
| C9300-24U-A | Catalyst 9300 24-port UPOE, Network Advantage |
| C9300-24U-E | Catalyst 9300 24-port UPOE, Network Essentials |
| C9300-24UX-A | Catalyst 9300 24-port mGig and UPOE, Network Advantage |
| C9300-24UX-E | Catalyst 9300 24-port mGig and UPOE, Network Essentials |
| C9300-48H-A | Catalyst 9300 48-port UPoE+, Network Advantage |
| C9300-48H-E | Catalyst 9300 48-port UPoE+, Network Essentials |
| C9300-48S-A | Catalyst 9300 48 GE SFP Ports, modular uplink Switch |
| C9300-48S-E | Catalyst 9300 48 GE SFP Ports, modular uplink Switch |
| C9300-48U-A | Catalyst 9300 48-port UPOE, Network Advantage |
| C9300-48U-E | Catalyst 9300 48-port UPOE, Network Essentials |
| C9300-48UN-A | Catalyst 9300 48-port of 5Gbps Network Advantage |
| C9300-48UN-E | Catalyst 9300 48-port of 5Gbps Network Essentials |
| C9300-48UXM-A | Catalyst 9300 48-port(12 mGig, 36 2.5Gbps) Network Advantage |
| C9300-48UXM-E | Catalyst 9300 48-port(12 mGig,36 2.5Gbps) Network Essentials |
