C3201WMIC-J10-K9

Manufacturer Part#: Cisco C3201WMIC-J10-K9

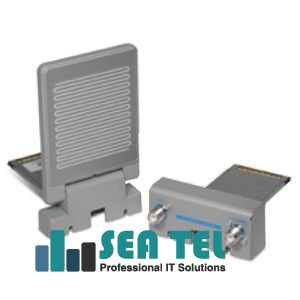

C3201WMIC-J10-K9 Wireless Module

C3201WMIC-J10-K9 IEEE 802.11b/g - 54Mbps - Wireless Module

The Cisco IEEE 802.11b/g Wireless Mobile Interface Card (WMIC) for Cisco 3200 Series routers provides integrated 802.11b/g wireless WAN or LAN capabilities. The Cisco 2.4 GHz 802.11 WMIC is engineered to be integrated as part of a Cisco 3200 Series Router solution, eliminating the need to use external 802.11b/g bridges or access points.

Cisco C3201WMIC-J10-K9 General Information:
Product Name: IEEE 802.11b/g Wireless Mobile Interface Card (WMIC)
Product Type: Wireless Module

Cisco C3201WMIC-J10-K9 Wireless Specifications:
Wireless Technology: Wi-Fi - IEEE 802.11b/g
Antenna Range: 3 Mile@ 1 Mbps Outdoors Typical IEEE 802.11b
Antenna Range: 1 Mile@ 11Mbps Outdoors Typical IEEE 802.11b
Frequency Band/Bandwidth: 2.4 GHz to 2.5 GHz IEEE 802.11b/g ISM Band
Transmission Speed: 54Mbps
Transmission Speed Details: 54Mbps Auto-fallback IEEE 802.11g
Transmission Speed Details: 6Mbps IEEE 802.11g
Transmission Speed Details: 1Mbps IEEE 802.11b
Transmission Speed Details: 11Mbps Auto-fallback IEEE 802.11b
Wireless Security:
MBSSIDs provides up to 16 SSIDs

C3201WMIC-J10-K9 Modulation:
IEEE 802.11g:
•Orthogonal frequency divisional multiplexing (OFDM)
•BPSK: 6 and 9 Mbps
•QPSK: 12 and 18 Mbps
•16-quadrature amplitude modulation (QAM): 24 and 36 Mbps
•64-QAM: 48 and 54 Mbps

C3201WMIC-J10-K9 IEEE 802.11b:
•Direct sequence spread spectrum (DSSS)
•Differential Binary Phase Shift Keying (DBPSK): 1 Mbps
•Differential Quadrature Phase Shift Keying (DQPSK): 2 Mbps
•Complementary Code Keying (CCK): 5.5 and 11 Mbps

Cisco C3201WMIC-J10-K9 Interfaces/Ports:
Interfaces/Ports: 1 Console

Cisco C3201WMIC-J10-K9 Management & Protocols:
Security Features: AES

Cisco C3201WMIC-J10-K9 Physical Characteristics:
Dimensions: 0.94 Height x 3.78 Width x 3.55 Depth
Weight: 0.22 lb
