Product Description
Manufacturer Part#: Cisco AIR-RM21A-A-K9

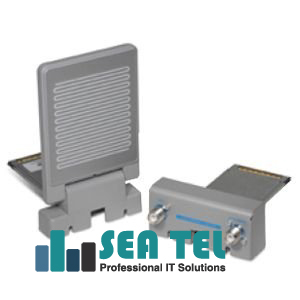

AIR-RM21A-A-K9 Cisco Wireless Module
AIR-RM21A-A-K9 802.11a Cardbus Radio Module w/IntAnt, FCC cfg
Cisco Aironet IEEE 802.11a Cardbus Radio Module provide an easy, cost-effective means to increase the capacity of your wireless network with a simple radio upgrade. An Allen wrench, supplied with the upgrade kit, is all you need to access the CardBus slot to upgrade a Cisco Aironet 1200 Series access point. Simply remove the existing 802.11a radio or remove the slot cover, and insert the new 802.11a module and upgrade the access point's IOS image. The access point does not need to be removed from the installed position and the installer does not need to be grounded while performing the upgrade. No other steps are required.
Cisco AIR-RM21A-A-K9 Wireless Specifications:
Wireless Technology: Wi-Fi - IEEE 802.11a
Antenna: Integrated
Antenna Range: 170 ft@ 54Mbps Outdoors
Antenna Range: 950 ft@ 6Mbps Outdoors
Antenna Range: 500 ft@ 6Mbps Indoors
Antenna Range: 90 ft@ 54Mbps Indoors
Frequency Band/Bandwidth: 5.15 GHz to 5.35 GHz IEEE 802.11a FCC
Frequency Band/Bandwidth: 5.72 GHz to 5.82 GHz IEEE 802.11a FCC
Access Method: CSMA/CA
Channels: 12 Channel Operating FCC
Channels: 12 Channel Non-overlapping FCC
Transmission Speed: 54Mbps
Transmission Speed Details: 54Mbps Auto-fallback IEEE 802.11a
Transmission Speed Details: 6Mbps IEEE 802.11a
Time Delay: 360 ns @ 6Mbps
Time Delay: 120 ns @ 54Mbps
Transmit Power: 17 dBm Maximum
Receiver Sensitivity: -87 dBm Typical @ 6Mbps
Receiver Sensitivity: -72 dBm Typical @ 54Mbps
Cisco AIR-RM21A-A-K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Name: Aironet 32-bit Cardbus Radio Module
Product Type: Wireless Module
Cisco AIR-RM21A-A-K9 Wireless Specifications:
Wireless Security:
Hardware-based algorithms for encryption
Supports Cisco Wireless Security Suite
802.1X and Temporal Key Integrity Protocol (TKIP)
Wi-Fi Protected Access (WPA) and WPA2
AES
Hardware-based algorithms for encryption
Supports Cisco Wireless Security Suite
802.1X and Temporal Key Integrity Protocol (TKIP)
Wi-Fi Protected Access (WPA) and WPA2
AES
AIR-RM21A-A-K9 Modulation:
Orthogonal Frequency Divisional Multiplexing (OFDM)
Binary Phase Shift Keying (BPSK) @ 6 and 9 Mbps
Quadrature Phase Shift Keying (QPSK) @ 12 and 18 Mbps
16-Quadrature Amplitude Modulation (QAM) @ 24 and 36 Mbps
64-QAM @ 48 and 54 Mbps
Orthogonal Frequency Divisional Multiplexing (OFDM)
Binary Phase Shift Keying (BPSK) @ 6 and 9 Mbps
Quadrature Phase Shift Keying (QPSK) @ 12 and 18 Mbps
16-Quadrature Amplitude Modulation (QAM) @ 24 and 36 Mbps
64-QAM @ 48 and 54 Mbps
Cisco AIR-RM21A-A-K9 Power Description:
Input Voltage: 5 V 0.5V
Cisco AIR-RM21A-A-K9 Environmental Conditions:
Temperature: -20 degrees C (-4.0 degrees F) to 50 degrees C (122.0 degrees F) Operating
Temperature: -40 degrees C (-40.0 degrees F) to 70 degrees C (158.0 degrees F) Storage
Humidity: 10% to 90% Non-condensing Operating
Cisco AIR-RM21A-A-K9 Physical Characteristics:
Dimensions: 1.6 Height x 3.5 Width x 4.9 Depth
Weight: 0.2 lb Approximate
AIR-RM21A-A-K9 Cisco Wireless Module
AIR-RM21A-A-K9 802.11a Cardbus Radio Module w/IntAnt, FCC cfg
Cisco Aironet IEEE 802.11a Cardbus Radio Module provide an easy, cost-effective means to increase the capacity of your wireless network with a simple radio upgrade. An Allen wrench, supplied with the upgrade kit, is all you need to access the CardBus slot to upgrade a Cisco Aironet 1200 Series access point. Simply remove the existing 802.11a radio or remove the slot cover, and insert the new 802.11a module and upgrade the access point's IOS image. The access point does not need to be removed from the installed position and the installer does not need to be grounded while performing the upgrade. No other steps are required.
Cisco AIR-RM21A-A-K9 Wireless Specifications:
Wireless Technology: Wi-Fi - IEEE 802.11a
Antenna: Integrated
Antenna Range: 170 ft@ 54Mbps Outdoors
Antenna Range: 950 ft@ 6Mbps Outdoors
Antenna Range: 500 ft@ 6Mbps Indoors
Antenna Range: 90 ft@ 54Mbps Indoors
Frequency Band/Bandwidth: 5.15 GHz to 5.35 GHz IEEE 802.11a FCC
Frequency Band/Bandwidth: 5.72 GHz to 5.82 GHz IEEE 802.11a FCC
Access Method: CSMA/CA
Channels: 12 Channel Operating FCC
Channels: 12 Channel Non-overlapping FCC
Transmission Speed: 54Mbps
Transmission Speed Details: 54Mbps Auto-fallback IEEE 802.11a
Transmission Speed Details: 6Mbps IEEE 802.11a
Time Delay: 360 ns @ 6Mbps
Time Delay: 120 ns @ 54Mbps
Transmit Power: 17 dBm Maximum
Receiver Sensitivity: -87 dBm Typical @ 6Mbps
Receiver Sensitivity: -72 dBm Typical @ 54Mbps
Cisco AIR-RM21A-A-K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Name: Aironet 32-bit Cardbus Radio Module
Product Type: Wireless Module
Cisco AIR-RM21A-A-K9 Wireless Specifications:
Wireless Security:
Hardware-based algorithms for encryption
Supports Cisco Wireless Security Suite
802.1X and Temporal Key Integrity Protocol (TKIP)
Wi-Fi Protected Access (WPA) and WPA2
AES
Hardware-based algorithms for encryption
Supports Cisco Wireless Security Suite
802.1X and Temporal Key Integrity Protocol (TKIP)
Wi-Fi Protected Access (WPA) and WPA2
AES
AIR-RM21A-A-K9 Modulation:
Orthogonal Frequency Divisional Multiplexing (OFDM)
Binary Phase Shift Keying (BPSK) @ 6 and 9 Mbps
Quadrature Phase Shift Keying (QPSK) @ 12 and 18 Mbps
16-Quadrature Amplitude Modulation (QAM) @ 24 and 36 Mbps
64-QAM @ 48 and 54 Mbps
Orthogonal Frequency Divisional Multiplexing (OFDM)
Binary Phase Shift Keying (BPSK) @ 6 and 9 Mbps
Quadrature Phase Shift Keying (QPSK) @ 12 and 18 Mbps
16-Quadrature Amplitude Modulation (QAM) @ 24 and 36 Mbps
64-QAM @ 48 and 54 Mbps
Cisco AIR-RM21A-A-K9 Power Description:
Input Voltage: 5 V 0.5V
Cisco AIR-RM21A-A-K9 Environmental Conditions:
Temperature: -20 degrees C (-4.0 degrees F) to 50 degrees C (122.0 degrees F) Operating
Temperature: -40 degrees C (-40.0 degrees F) to 70 degrees C (158.0 degrees F) Storage
Humidity: 10% to 90% Non-condensing Operating
Cisco AIR-RM21A-A-K9 Physical Characteristics:
Dimensions: 1.6 Height x 3.5 Width x 4.9 Depth
Weight: 0.2 lb Approximate
| Sea Tel International Co., Limited Wireless Modules | |||
| AIR-RM20A-S-K9 | AIR-RM20A-A-K9 | AIR-RM22A-C-K9 | HWIC-3G-CDMA-S |
| AIR-MP20B-A-K9 | AIR-RM20A-J-K9 | AIR-RM22A-E-K9 | HWIC-3G-CDMA-V |
| AIR-MP20B-C-K9 | AIR-RM20A-T-K9 | AIR-RM22A-J-K9 | HWIC-3G-GSM |
| AIR-MP20B-E-K9 | AIR-RM21A-A-K9 | AIR-RM22A-N-K9 | HWIC-AP-AG-A |
| AIR-MP20B-I-K9 | AIR-RM21A-C-K9 | AIR-RM22A-P-K9 | HWIC-AP-AG-B |
| AIR-MP20B-J-K9 | AIR-RM21A-E-K9 | C3201WMIC-A-K9 | HWIC-AP-AG-E |
| AIR-MP21G-A-K9 | AIR-RM21A-J-K9 | C3201WMIC-E-K9 | HWIC-AP-AG-N |
| AIR-MP21G-E-K9 | AIR-RM21A-N-K9 | C3201WMIC-J10-K9 | HWIC-AP-AG-P |
| AIR-MP21G-E-K9 | AIR-RM21A-P-K9 | C3201WMIC-J-K9 | HWIC-AP-G-A |
| AIR-MP21G-J-K9 | AIR-RM21A-S-K9 | C3201WMIC-TPEK9 | HWIC-AP-G-E |
| AIR-RM1252A-x-K9 | AIR-RM21A-T-K9 | C3202WMIC-A49-K9 | HWIC-AP-G-J |
| AIR-RM1252G-x-K9 | AIR-RM22A-A-K9 | C3202WMIC-TPA49K9 | WS-SVC-WLAN-1-K9 |
