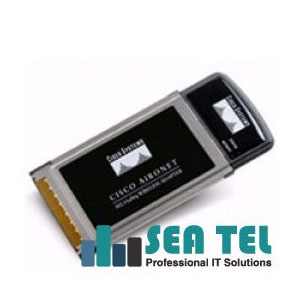

AIR-LMC352

Manufacturer Part#: Cisco AIR-LMC352
AIR-LMC352  Cisco Wi-Fi Adapter

AIR-LMC352 - Wi-Fi Adapter - PC Card Type II - 11Mbps

AIR-LMC352 Technical Information:
Transmit Power: 100 mW
Receiver Sensitivity: -94 dBm 1Mbps DBPSK
Receiver Sensitivity: -91 dBm 2Mbps DQPSK
Receiver Sensitivity: -89 dBm 5.5Mbps CCK

Cisco AIR-LMC352 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Aironet
Product Series: 350
Product Name: Aironet 350 Wireless LAN PC Card
Product Type: Wi-Fi Adapter

Cisco AIR-LMC352 Technical Information:
ISM Band: Yes
ISM Minimum Frequency: 2.4 GHz
ISM Maximum Frequency: 2.49 GHz
Indoor Antenna Range: 350 ft
Outdoor Antenna Range: 2000 ft
Wireless Transmission Speed: 11 Mbps
Transmission Speed Details: 1 Mbps IEEE 802.11b
Transmission Speed Details: 11 Mbps Auto-fallback IEEE 802.11b
Transmission Speed Details: 2 Mbps Auto-fallback IEEE 802.11b
Transmission Speed Details: 5.5 Mbps Auto-fallback IEEE 802.11b
Access Method: CSMA/CA
Channels: 11 Channel Operating North America
Channels: 13 Channel Operating ETSI
Channels: 14 Channel Operating Japan
Channels: 3 Channel Non-overlapping
Time Delay: 500 ns @ 1Mbps
Time Delay: 140 ns @ 11Mbps
Time Delay: 300 ns @ 5.5Mbps
Time Delay: 400 ns @ 2Mbps
Transmit Power: 1 mW
Transmit Power: 5 mW
Transmit Power: 30 mW
Transmit Power: 20 mW
Transmit Power: 50 mW
Receiver Sensitivity: -85 dBm 11Mbps CCK
Modulation:
Direct Sequence Spread Spectrum (DSSS)
DBPSK @1 Mbps
DQPSK @ 2 Mbps
CCK @ 5.5 and 11 Mbps
Direct Sequence Spread Spectrum (DSSS)
DBPSK @1 Mbps
DQPSK @ 2 Mbps
CCK @ 5.5 and 11 Mbps

Cisco AIR-LMC352 Interfaces/Ports:
Host Interface: PC Card

Cisco AIR-LMC352 Management & Protocols:
Management:
Cisco Aironet Client Utility
Cisco Aironet Client Utility

Protocols: TKIP
Protocols: TCP/IP
Protocols: EAP

Cisco AIR-LMC352 Controls/Indicators:
Status Indicators:
Link Status
Link Activity
Link Status
Link Activity

Cisco AIR-LMC352 Power Description:
Input Voltage: 5 V DC 5%
Input Current: 450 mA Transmit
Input Current: 270 mA Receive
Input Current: 15 mA Sleep

Cisco AIR-LMC352 Environmental Conditions:
Temperature: -22 degrees F (-30.0 degrees C) to 158 degrees F (70.0 degrees C)
Humidity: 10% to 90% Non-condensing

Cisco AIR-LMC352 Physical Characteristics:
Dimensions: 0.1 Height x 2.13 Width x 3.31 Depth
