Product Description
Manufacturer Part#: Cisco AIR-LAP1242AG-N-K9

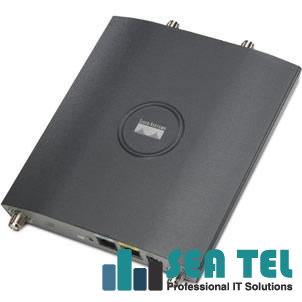

AIR-LAP1242AG-N-K9 Cisco Wireless Access Point (AP)
AIR-LAP1242AG-N-K9 - Wireless Access Point - 54Mbps
The Aironet 1240AG IEEE 802.11a/g Non-modular LWAPP Access Point delivers the versatility, high capacity, security, and enterpriseclass features demanded by WLAN customers. These IEEE 802.11a/b/g access point is designed specifically for challenging RF environments such as factories, warehouses, and large retail establishments that require the antenna versatility associated with connectorized antennas, a rugged metal enclosure, and a broad operating temperature range.
The Aironet 1240AG IEEE 802.11a/g Non-modular LWAPP Access Point works in conjunction with Cisco wireless LAN controllers and the Cisco Wireless Control System (WCS). It can automatically detect the best-available Cisco wireless LAN controller and download appropriate policies and configuration information with no manual intervention. Autonomous access points are based on Cisco IOS Software and may optionally operate with the Cisco Works Wireless LAN Solution Engine (WLSE).
Cisco AIR-LAP1242AG-N-K9 Technical Information:
Channels: 12 Channel IEEE 802.11a
Channels: 11 Channel IEEE 802.11b/g
Wireless Transmission Speed: 54 Mbps
Cisco AIR-LAP1242AG-N-K9 Environmental Conditions:
Temperature: -40 degrees C (-40.0 degrees F) 85 degrees C (185.0 degrees F) Non-operating
Temperature: -20 degrees C (-4.0 degrees F) 55 degrees C (131.0 degrees F) Operating
Cisco AIR-LAP1242AG-N-K9 Physical Characteristics:
Form Factor: Wall-mountable
Dimensions: 6.6 Height x 8.5 Width x 8.5 Depth
Weight: 2 lb
Cisco AIR-LAP1242AG-N-K9 Technical Information:
Indoor Antenna Range: 410 ft
Outdoor Antenna Range: 900 ft
Channels: 3 Channel Non-overlapping IEEE 802.11b/g
Channels: 12 Channel Non-overlapping IEEE 802.11a
Transmission Speed Details: 108Mbps 2x Mode
Transmission Speed Details: 54Mbps Auto-fallback IEEE 802.11a/g
Transmission Speed Details: 6Mbps IEEE 802.11a/g
Transmission Speed Details: 1Mbps IEEE 802.11b
Transmission Speed Details: 11Mbps Auto-fallback IEEE 802.11b
Transmit Power: 20 dBm
Modulation:
OFDM
CCK
OFDM
CCK
Cisco AIR-LAP1242AG-N-K9 Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX LAN
Cisco AIR-LAP1242AG-N-K9 Management & Protocols:
Security Features:
High security without performance degradation
RC4 encryption algorithm
High security without performance degradation
RC4 encryption algorithm
Cisco AIR-LAP1242AG-N-K9 Power Description:
Input Voltage: 220 V AC
Input Voltage: 110 V AC
Input Voltage Range: 100V AC to 240V AC
Input Voltage Range: 36V DC to 57V DC
Power Source: Power Supply
Cisco AIR-LAP1242AG-N-K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Aironet
Product Series: 1240AG
Product Name: Aironet 1240AG Wireless Access Point
Product Type: Wireless Access Point
Cisco AIR-LAP1242AG-N-K9 Technical Information:
Wi-Fi Standard: IEEE 802.11a/b/g
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.41 GHz
ISM Maximum Frequency: 2.4 GHz
UNII Minimum Frequency: 5.15 GHz
UNII Maximum Frequency: 5 GHz
Number of Antennas: 4
Antenna Gain: 2.2 dBi
Antenna Gain: 3.5 dBi
Antenna Type: Diversity Dipole Antenna
Antenna Type: Omni-directional Antenna
Antenna Connector: RP-TNC Connector
