Manufacturer Part#: Cisco AIR-AP1242AG-A-K9
AIR-AP1242AG-A-K9 - Cisco Wireless Points (AP)

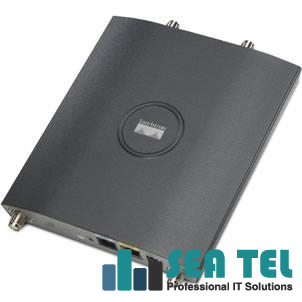

AIR-AP1242AG-A-K9 - Cisco Aironet 1242AG - Wireless access point - 802.11b, 802.11a, 802.11g
Aironet 1232AG 802.11a/b/g Wireless Access Point delivers the versatility, high capacity, security, and enterprise-class features demanded by WLAN customers. It is designed specifically for challenging RF environments like factories, warehouses, and large retail establishments that require the antenna versatility associated with connectorized antennas, a rugged metal enclosure, and a broad operating temperature range. It extends the security, scalability, reliability, ease of deployment, and manageability available in wired networks to the wireless infrastructure.
Running Cisco IOS Software, makes the Access Point supports link role flexibility which provides both access point and bridge functionality through configuration of each radio as an access point, repeater, root bridge, non-root bridge, or workgroup bridge. This configuration flexibility enables the Access Point to address applications ranging from basic wireless LAN coverage to wireless LAN coverage with wireless backhaul to more traditional bridging applications. The access point without wired connection will use the 5-GHz radio to wirelessly connect to the other access point for backhaul to the network.
Cisco AIR-AP1242AG-A-K9 General Information:
Manufacturer: Cisco Systems, Inc
Cisco AIR-AP1242AG-A-K9 Technical Information:
Channels: 3 Channel Non-overlapping IEEE 802.11b/g
Channels: 12 Channel Operating IEEE 802.11a
Channels: 11 Channel Operating IEEE 802.11b/g
Wireless Transmission Speed: 108 Mbps
Transmission Speed Details: 108Mbps 2x Mode
Cisco AIR-AP1242AG-A-K9 General Information:
Brand Name: Cisco
Product Line: Aironet
Product Series: 1240AG
Product Name: Aironet 1242AG 802.11a/b/g Wireless Access Point
Product Type: Wireless Access Point
Cisco AIR-AP1242AG-A-K9 Technical Information:
Wi-Fi Standard: IEEE 802.11a/b/g
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.41 GHz
ISM Maximum Frequency: 2.462 GHz
UNII Minimum Frequency: 5.15 GHz
UNII Maximum Frequency: 5.82 GHz
Number of Antennas: 2
Antenna Connector: Dual RP-TNC Connector
Indoor Antenna Range: 459.32 ft
Outdoor Antenna Range: 290
Channels: 12 Channel Non-overlapping IEEE 802.11a
Transmission Speed Details: 54Mbps Auto-fallback IEEE 802.11a/g
Transmission Speed Details: 11Mbps Auto-fallback IEEE 802.11b
Transmission Speed Details: 1Mbps IEEE 802.11b
Transmission Speed Details: 6Mbps IEEE 802.11a/g
Modulation:
802.11a: OFDM
802.11g: CCK
802.11a: OFDM
802.11g: CCK
Cisco AIR-AP1242AG-A-K9 Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x 10/100Base-TX
Cisco AIR-AP1242AG-A-K9 Management & Protocols:
Management:
Telnet
Console port management
Trivial File Transfer Protocol (TFTP)
CiscoWorks Campus Manager
CiscoWorks CiscoView
CiscoWorks WLSE
CiscoWorks Wireless LAN Solution Engine (WLSE)
Simple Network Management Protocol (MIB I and MIB II)
CiscoWorks Resource Manager Essentials (RME)
CiscoWorks Software Image Manager (SWIM)
Telnet
Console port management
Trivial File Transfer Protocol (TFTP)
CiscoWorks Campus Manager
CiscoWorks CiscoView
CiscoWorks WLSE
CiscoWorks Wireless LAN Solution Engine (WLSE)
Simple Network Management Protocol (MIB I and MIB II)
CiscoWorks Resource Manager Essentials (RME)
CiscoWorks Software Image Manager (SWIM)
Cisco AIR-AP1242AG-A-K9 Power Description:
Input Voltage: 48 V DC
Input Voltage: 220 V AC
Input Voltage: 110 V AC
Input Voltage Range: 100V AC to 240V AC
Power Source: Power Supply
Cisco AIR-AP1242AG-A-K9 Physical Characteristics:
Form Factor: Desktop
Form Factor: Ceiling-mountable
Dimensions: 1.1 Height x 6.6 Width x 8.5 Depth
Weight: 2 lb
