Product Description
Manufacturer Part#: Cisco AIR-ANT4121

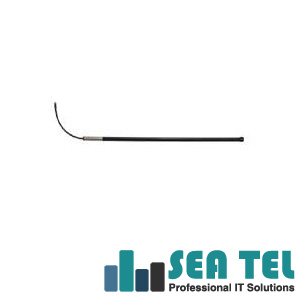

AIR-ANT4121 Cisco Wireless Antenna
AIR-ANT4121 - 2.4 GHz,12 dBi Omni Mast Antenna w/RP-TNC Connector
Mast mount outdoor high gain antenna with RP-TNC-This antenna was designed for WLAN applications for frequencies of 2400 MHz to 2500 MHz. The antenna is omni directional and has a nominal gain of 12 dBi. This design uses an elevated center-feed to produce an elevation pattern with very little "squint" or beam-tilt. It is designed to be mounted on a round mast.
Cisco AIR-ANT4121 Physical Characteristics:
Shipping Weight: 3.42 lb
Cisco AIR-ANT4121 Additional Information:
Description: High-gain omnidirectional mast mount
Application: Outdoor medium-range point-to-multipoint applications
Cisco AIR-ANT4121 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Aironet
Product Name: Aironet Omni-directional Antenna
Product Type: Omni-directional Antenna
Cisco AIR-ANT4121 Technical Information:
Antenna Range: 1.4 Mile @ 11Mbps Outdoor Approximate
Antenna Range: 4.6 Mile @ 1Mbps Outdoor Approximate
Frequency: 2.4 GHz to 2.83 GHz
Gain: 12 dBi
Polarization: Vertical
Beamwidth: 7degrees Vertical Plane
Beamwidth: 360degrees Horizontal Plane
Survival Wind Speed: 100 M/h
VSWR: 2:1
Cisco AIR-ANT4121 Interfaces/Ports:
Connectors: 1 x RP-TNC
Cisco AIR-ANT4121 Physical Characteristics:
Dimensions: 40 Height x 1.25 Width
Shipping Dimensions: 4 Height x 17 Width x 40 Depth
AIR-ANT4121 Cisco Wireless Antenna
AIR-ANT4121 - 2.4 GHz,12 dBi Omni Mast Antenna w/RP-TNC Connector
Mast mount outdoor high gain antenna with RP-TNC-This antenna was designed for WLAN applications for frequencies of 2400 MHz to 2500 MHz. The antenna is omni directional and has a nominal gain of 12 dBi. This design uses an elevated center-feed to produce an elevation pattern with very little "squint" or beam-tilt. It is designed to be mounted on a round mast.
Cisco AIR-ANT4121 Physical Characteristics:
Shipping Weight: 3.42 lb
Cisco AIR-ANT4121 Additional Information:
Description: High-gain omnidirectional mast mount
Application: Outdoor medium-range point-to-multipoint applications
Cisco AIR-ANT4121 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Aironet
Product Name: Aironet Omni-directional Antenna
Product Type: Omni-directional Antenna
Cisco AIR-ANT4121 Technical Information:
Antenna Range: 1.4 Mile @ 11Mbps Outdoor Approximate
Antenna Range: 4.6 Mile @ 1Mbps Outdoor Approximate
Frequency: 2.4 GHz to 2.83 GHz
Gain: 12 dBi
Polarization: Vertical
Beamwidth: 7degrees Vertical Plane
Beamwidth: 360degrees Horizontal Plane
Survival Wind Speed: 100 M/h
VSWR: 2:1
Cisco AIR-ANT4121 Interfaces/Ports:
Connectors: 1 x RP-TNC
Cisco AIR-ANT4121 Physical Characteristics:
Dimensions: 40 Height x 1.25 Width
Shipping Dimensions: 4 Height x 17 Width x 40 Depth
