3725MBUNDLE-8B-S/T

Manufacturer Part#: Cisco 3725MBUNDLE-8B-S/T

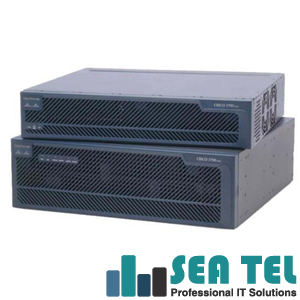

3725MBUNDLE-8B-S/T Cisco 3700 Series Multiservice Access Router

3725MBUNDLE-8B-S/T - Access Router - 2 x 10/100Base-TX LAN, 8 x ISDN BRI (S/T) WAN

Cisco 3725 router, installed with digital modem network module and PRI interface, offer the most flexible, scalable, manageable, and high-performance dial-access solutions available in the market today.

Cisco 3725 BRI bundle use eight-port BRI network module together with a digital modem network module to provide connectivity for up to 16 concurrent remote users. Additional WICs and AIMs can be ordered to increase performance. The benefits of this bundle include ease of ordering, the ability to support remote users at the maximum connection speeds available, and the inclusion of the feature-rich Cisco IOS Software.

Cisco 3725MBUNDLE-8B-S/T General Information
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 3700
Product Model: 3725
Product Name: 3725 Multiservice Access Router
Product Type: Access Router


Cisco 3725MBUNDLE-8B-S/T Interfaces/Ports:
Number of Ports: 10
Fast Ethernet Port: Yes
ISDN Port: Yes
Interfaces/Ports: 2 x RJ-45 10/100Base-TX 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Interfaces/Ports: 8 x RJ-45 ISDN BRI (S/T) ISDN BRI (S/T) WAN

Cisco 3725MBUNDLE-8B-S/T Media & Performance:
Connectivity Media: Twisted Pair
Forwarding/Filtering Rate: 100Kpps

Cisco 3725MBUNDLE-8B-S/T I/O Expansions:
Number of Expansion Slots: 8
Expansion Slots: (2 Total /2 Populated) Network Module
Expansion Slots: (3 Total) WIC
Expansion Slots: (1 Total) CompactFlash (CF) Card
Expansion Slots: (2 Total) AIM
Modules: 1 x NM-18DM Network Module
Modules: 1 x NM-8BRI-S/T Network Module

Cisco 3725MBUNDLE-8B-S/T Processor & Chipset:
Processor: MIPS 240MHz RISC

Cisco 3725MBUNDLE-8B-S/T Memory:
Standard Memory: 256MB
Maximum Memory: 256MB
Memory Technology: SDRAM
Flash Memory: 32 MB

Cisco 3725MBUNDLE-8B-S/T Software:
Operating System:
Cisco 3725 Series IOS IP BASE

Cisco 3725MBUNDLE-8B-S/T Power Description:
Input Voltage: 110V AC
Input Voltage: 220V AC
Input Voltage Range: 100V AC to 240V AC
Power Source: AC Adapter
Redundant Power Supply: Yes

Cisco 3725MBUNDLE-8B-S/T Physical Characteristics:
Compatible Rack Unit: 2U
Form Factor: Desktop
Form Factor: Rack-mountable
Dimensions: 3.5 Height x 17.1 Width x 14.7 Depth
Weight: 14 lb

Contact Sea Tel International Co., Limited for more information.
