SPA Interface Addresses on the Cisco 12000 SIP-601
04.03.2013
SPA Interface Addresses on the Cisco 12000 SIP-601
A Cisco 12000 Series Router identifies a SPA interface address by its SIP slot number, SPA subslot, and port number on the SPA, in the format slot/subslot/port. Subslots and ports are numbered starting from
0, so each Cisco 12000 SIP-601 has two subslots 0 (left) and 1 (right). For example, the interface address of a 1-port SPA located in the second SIP subslot, where the SIP is inserted into router line card slot 3 is 3/1/0. Figure 1-20 shows the slot, subslot, and port locations for the 1-Port 10-Gigabit Ethernet SPA and the 10-Port Gigabit Ethernet SPA.

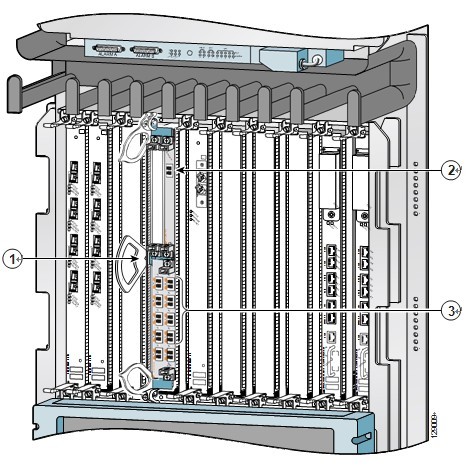

Slot, Subslot, and Port Locations for the 1-Port 10-Gigabit Ethernet SPA and the 10-Port Gigabit Ethernet SPA.
A Cisco 12000 Series Router identifies a SPA interface address by its SIP slot number, SPA subslot, and port number on the SPA, in the format slot/subslot/port. Subslots and ports are numbered starting from
0, so each Cisco 12000 SIP-601 has two subslots 0 (left) and 1 (right). For example, the interface address of a 1-port SPA located in the second SIP subslot, where the SIP is inserted into router line card slot 3 is 3/1/0. Figure 1-20 shows the slot, subslot, and port locations for the 1-Port 10-Gigabit Ethernet SPA and the 10-Port Gigabit Ethernet SPA.
Slot, Subslot, and Port Locations for the 1-Port 10-Gigabit Ethernet SPA and the 10-Port Gigabit Ethernet SPA.
SlotandPortLocationsforthe 1-Port10-GigabitEthernetSPA
CallOutNumber Description
1 Slot3
2 Subslot0,Port3/0/0
3 Subslot1,Ports3/1/0to3/1/9
