Product Description
Manufacturer Part#: CISCO1760-V

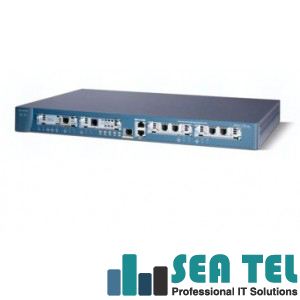

CISCO1760-V 1700 Series Modular Access Router
CISCO1760-V - 10/100 Modular Router W/Voice,19-In Chassis,32Mb Fl/96Mb Dr
Cisco CISCO1760-V General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 1700
Product Name: 1760 Router
Product Type: Router
Cisco CISCO1760-V Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Interfaces/Ports: 1 x RJ-45 Console Management
Cisco CISCO1760-V Media & Performance:
Connectivity Media: Cable Twisted Pair
Cisco CISCO1760-V I/O Expansions:
Number of Expansion Slots: 5
Expansion Slots: (2 Total) VIC
Expansion Slots: (1 Total) Expansion Slot
Expansion Slots: (2 Total) VIC/WIC
Modules: 4-Channel Packet Voice/Fax DSP Module
Cisco CISCO1760-V Management & Protocols:
Management:
Supports Cisco Configmaker v.2.6
Manageable via SNMP
Supports IEEE 802.1Q VLAN
Supports Cisco Configmaker v.2.6
Manageable via SNMP
Supports IEEE 802.1Q VLAN
Cisco CISCO1760-V Processor & Chipset:
Processor: 1 x Motorola MPC860
Cisco CISCO1760-V Memory:
Standard Memory: 96MB
Maximum Memory: 128MB
Memory Technology: DRAM
Flash Memory: 32 MB
Cisco CISCO1760-V Controls/Indicators:
Status Indicators:
Port status
Link activity
Power
Port status
Link activity
Power
Cisco CISCO1760-V Software:
Operating System:
Cisco 1700 IOS IP/VOX PLUS
Cisco 1700 IOS IP/VOX PLUS
Cisco CISCO1760-V Power Description:
Input Voltage: 220V AC
Input Voltage: 110V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 1.5A
Frequency: 50 Hz to 60 Hz
Power Consumption: 50W Maximum Operating
Cisco CISCO1760-V Environmental Conditions:
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Temperature: -4 degrees F (-20.0 degrees C) to 149 degrees F (65.0 degrees C) Storage
Humidity: 5% to 95% Non-condensing Relative Humidity Storage
Humidity: 10% to 85% Non-condensing Relative Humidity Operating
Cisco CISCO1760-V Physical Characteristics:
Color: Blue
Form Factor: Rack-mountable
Dimensions: 1.7 Height x 17.5 Width x 12.8 Depth
Shipping Dimensions: 9 Height x 18 Width x 21 Depth
Weight: 9.4 lb
Shipping Weight: 13 lb
CISCO1760-V 1700 Series Modular Access Router
CISCO1760-V - 10/100 Modular Router W/Voice,19-In Chassis,32Mb Fl/96Mb Dr
Cisco CISCO1760-V General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 1700
Product Name: 1760 Router
Product Type: Router
Cisco CISCO1760-V Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Interfaces/Ports: 1 x RJ-45 Console Management
Cisco CISCO1760-V Media & Performance:
Connectivity Media: Cable Twisted Pair
Cisco CISCO1760-V I/O Expansions:
Number of Expansion Slots: 5
Expansion Slots: (2 Total) VIC
Expansion Slots: (1 Total) Expansion Slot
Expansion Slots: (2 Total) VIC/WIC
Modules: 4-Channel Packet Voice/Fax DSP Module
Cisco CISCO1760-V Management & Protocols:
Management:
Supports Cisco Configmaker v.2.6
Manageable via SNMP
Supports IEEE 802.1Q VLAN
Supports Cisco Configmaker v.2.6
Manageable via SNMP
Supports IEEE 802.1Q VLAN
Cisco CISCO1760-V Processor & Chipset:
Processor: 1 x Motorola MPC860
Cisco CISCO1760-V Memory:
Standard Memory: 96MB
Maximum Memory: 128MB
Memory Technology: DRAM
Flash Memory: 32 MB
Cisco CISCO1760-V Controls/Indicators:
Status Indicators:
Port status
Link activity
Power
Port status
Link activity
Power
Cisco CISCO1760-V Software:
Operating System:
Cisco 1700 IOS IP/VOX PLUS
Cisco 1700 IOS IP/VOX PLUS
Cisco CISCO1760-V Power Description:
Input Voltage: 220V AC
Input Voltage: 110V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 1.5A
Frequency: 50 Hz to 60 Hz
Power Consumption: 50W Maximum Operating
Cisco CISCO1760-V Environmental Conditions:
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Temperature: -4 degrees F (-20.0 degrees C) to 149 degrees F (65.0 degrees C) Storage
Humidity: 5% to 95% Non-condensing Relative Humidity Storage
Humidity: 10% to 85% Non-condensing Relative Humidity Operating
Cisco CISCO1760-V Physical Characteristics:
Color: Blue
Form Factor: Rack-mountable
Dimensions: 1.7 Height x 17.5 Width x 12.8 Depth
Shipping Dimensions: 9 Height x 18 Width x 21 Depth
Weight: 9.4 lb
Shipping Weight: 13 lb
| Sea Tel International Co., Limited Cisco 1700 Series Router | |||
| CISCO1760 | CISCO1721-ADSLI | CISCO1751-VPN/K9 | CISCO1712-VPN/K9 |
| CISCO1760-V-CCME | CISCO1721-SHDSL | CISCO1751-VPN/K9-A | CISCO1751 |
| CISCO1760-V-SRST | CISCO1721-VPN/K9 | CISCO1760-ADSL | CISCO1720-ADSL |
| CISCO1701-K9 | CISCO1721-VPN/K9-A | CISCO1760-V3PN/K9 | CISCO1720 |
| CISCO1710-VPN-M/K9 | CISCO1750 | CISCO1760-VPN/K9 | CISCO1751-V |
| CISCO1720-VPN-M/K9 | CISCO1750-2V | CISCO1760-VPN/K9-A | CISCO1721 |
| CISCO1720-VPN-M/K8 | CISCO1750-4V | CISCO1760-V | |
| CISCO1721-ADSL | CISCO1750-ADSL | CISCO1711-VPN/K9 | |
